6m70 Piston Ring For Mitsubishi Engine Me995857 ME995855

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: 6M70
Minimum Order Quantity: 1 SET
Price: usd+110+SET
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new

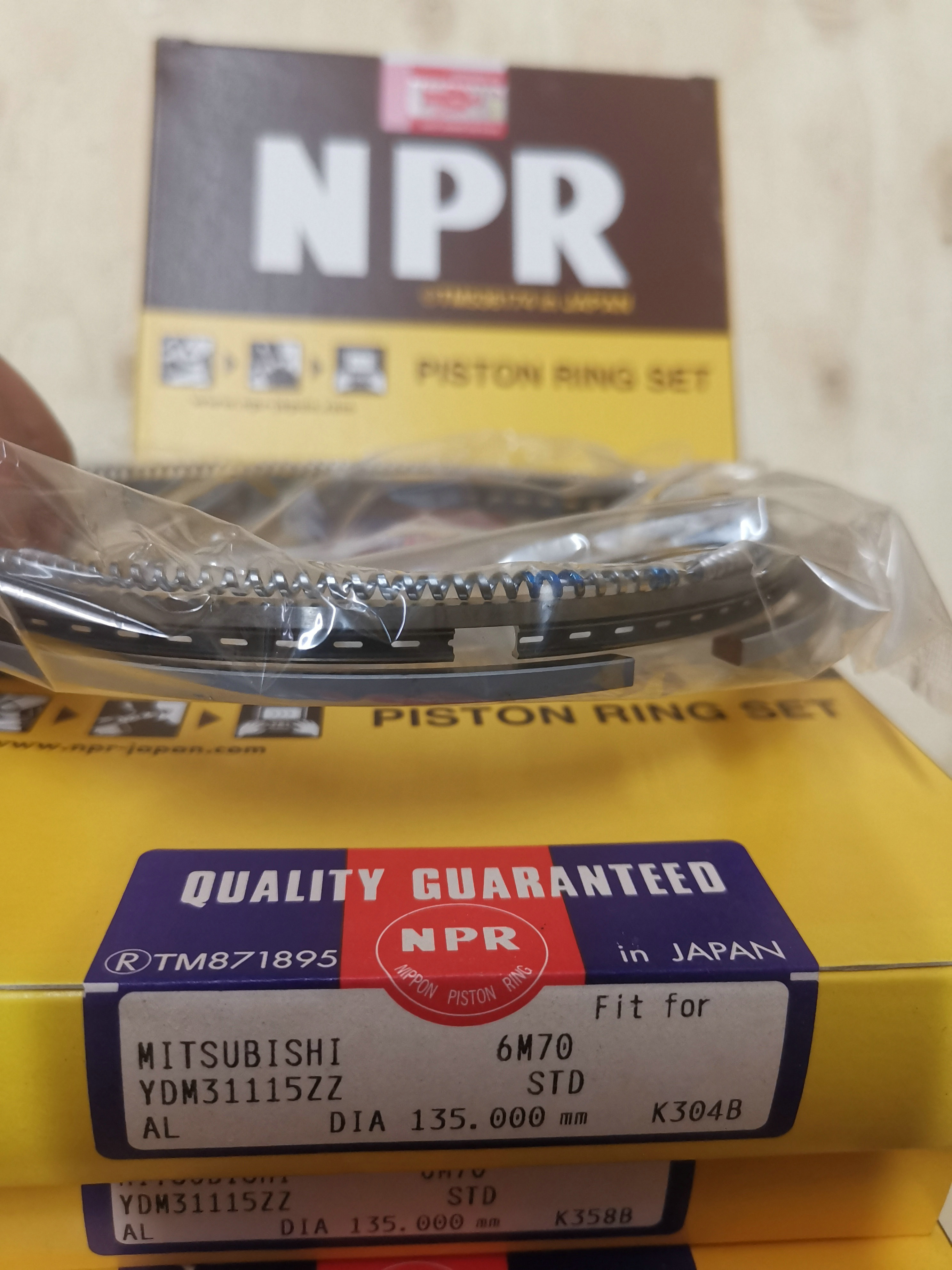

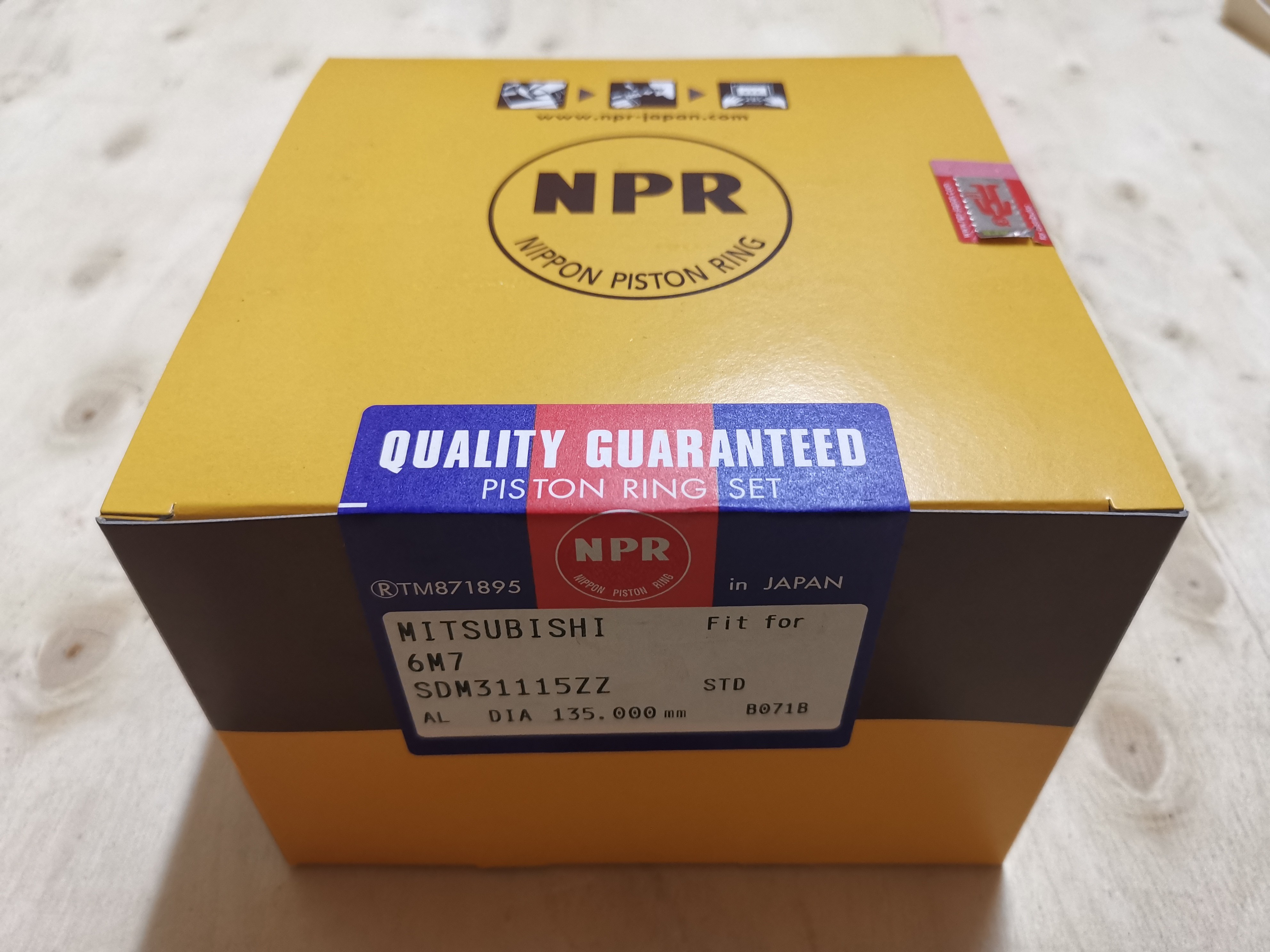

OEM No:: ME995857 ME995855(cy1) NPR Catalog Code:: SDM31115ZZ / YDM31115ZZ
Reference:: ME995857 ME995855(cy1) Make :: MITSUBISHI
Engine Model:: 6M70 Cyl No. :: 6
SET/CYL:: SET/CYL Delivery Time:: 2-5days
High Light:

6m70 Piston Ring

,

Me995857 Piston Ring


Product Description

6m70 piston ring for mitsubishi 6m70 engine me995857 ME995855(cy1)





Piston Size(mm)
d1(D) h1(B) a1(T)
1st 135 3.306 4.65
2nd 135 2.5 4.7
Oil 135 4 4.35







6m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 06m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 16m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 26m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 36m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 46m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 56m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 66m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 76m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 86m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 9



“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.









6m70 Piston Ring For Mitsubishi Engine Me995857 ME995855 10
