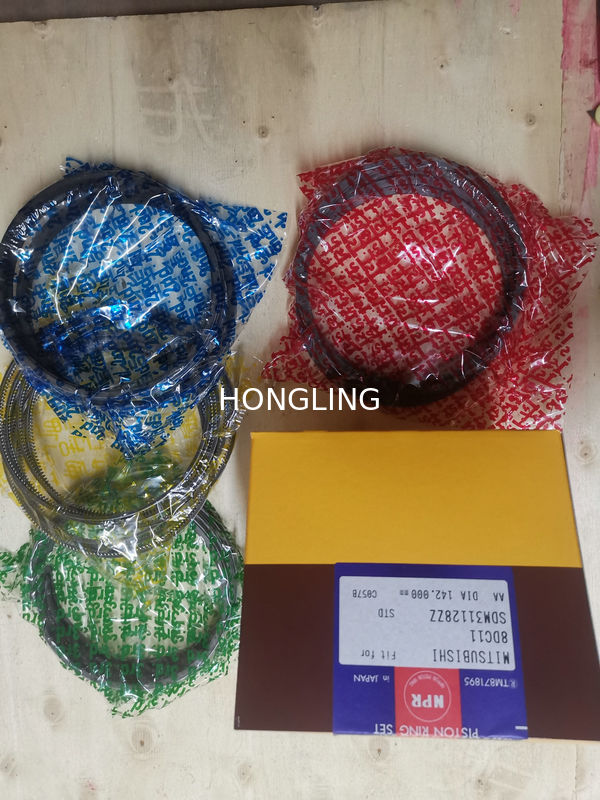

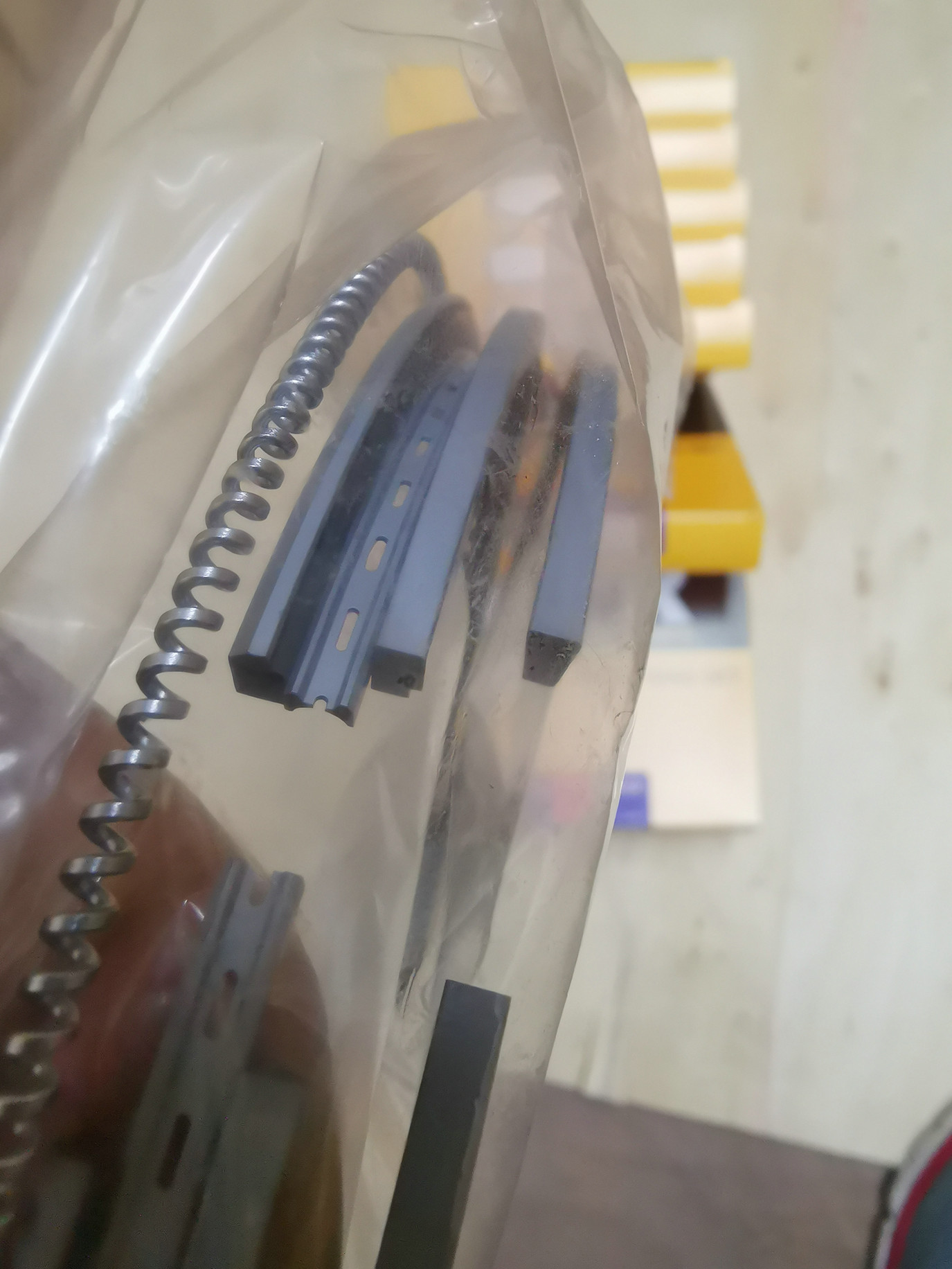

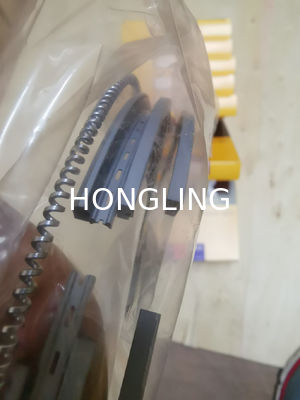

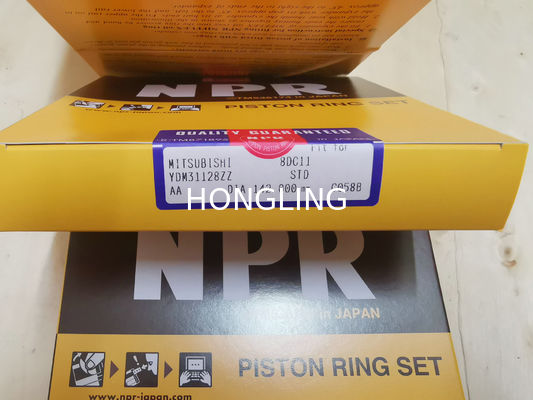

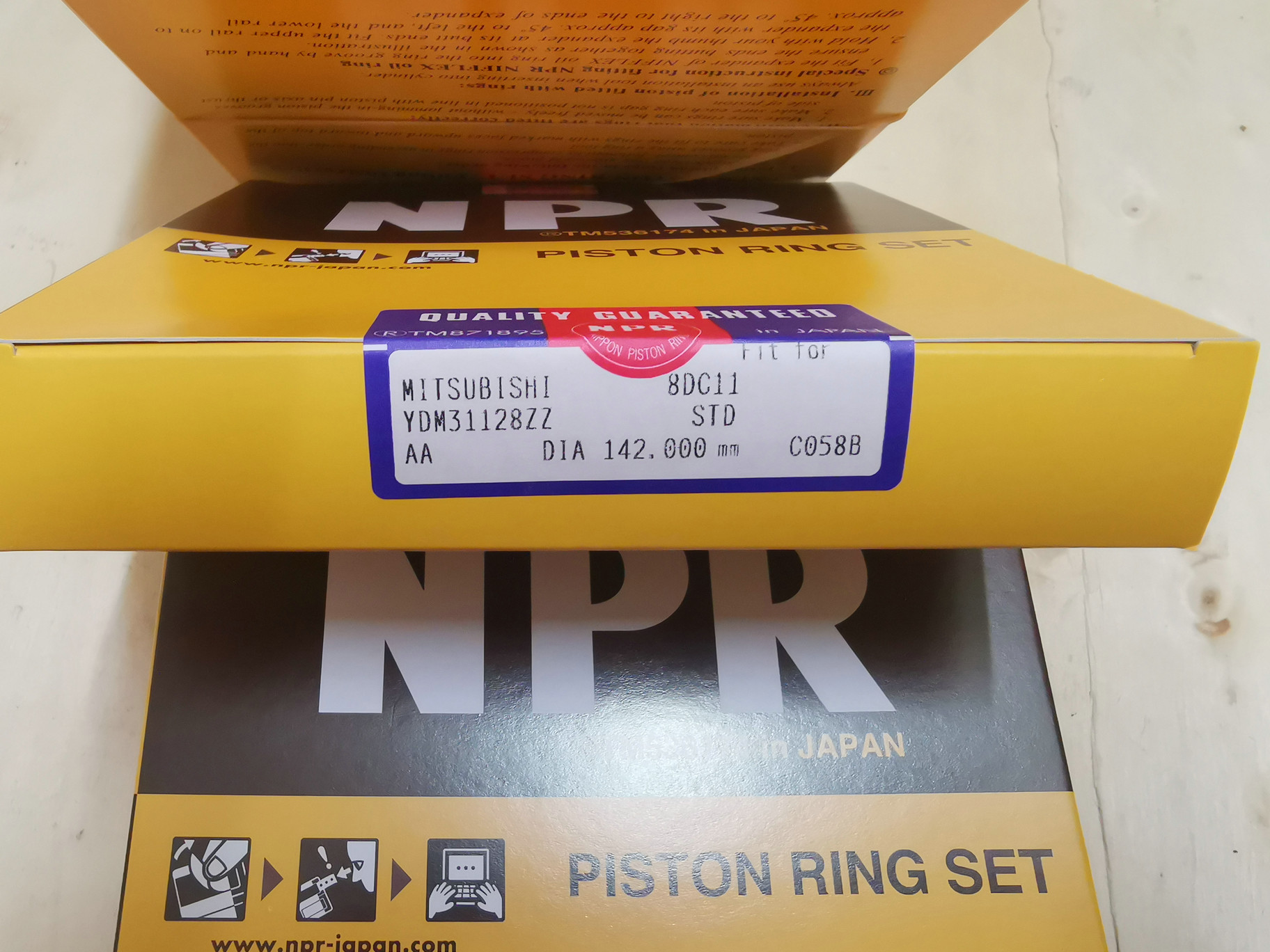

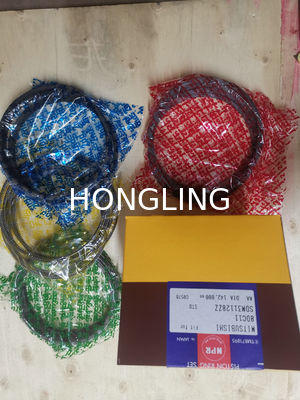

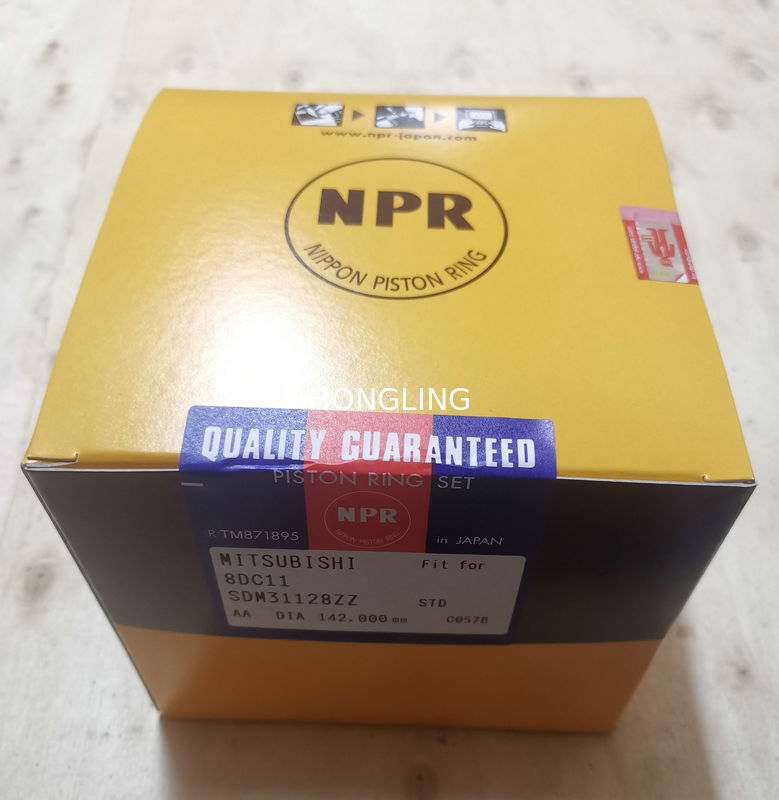

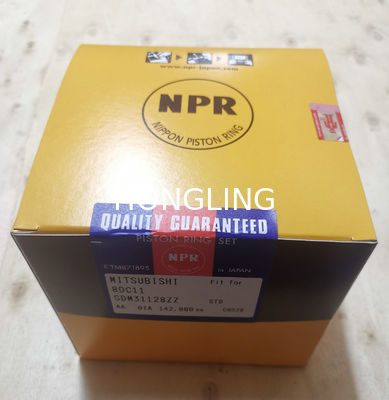

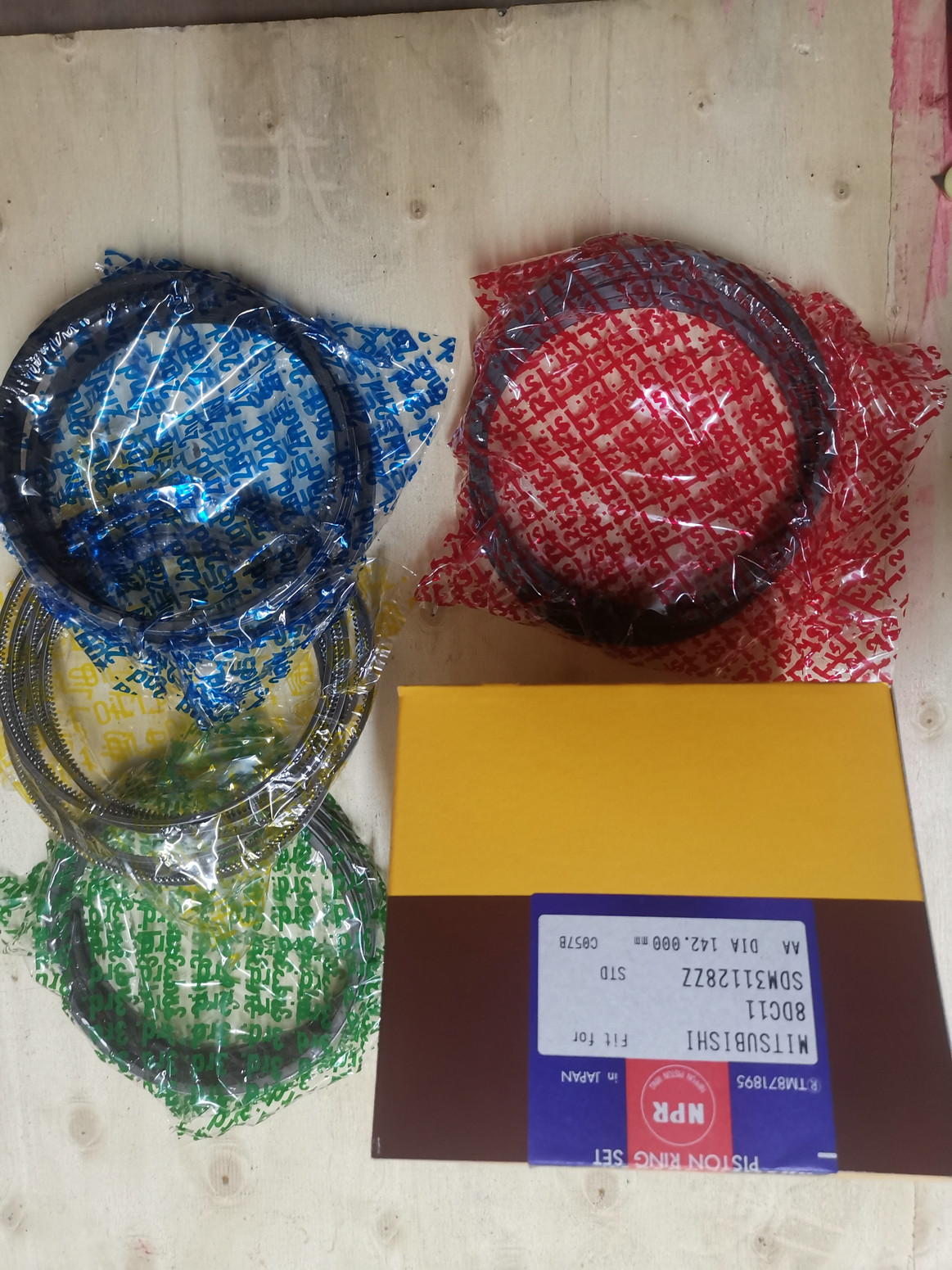

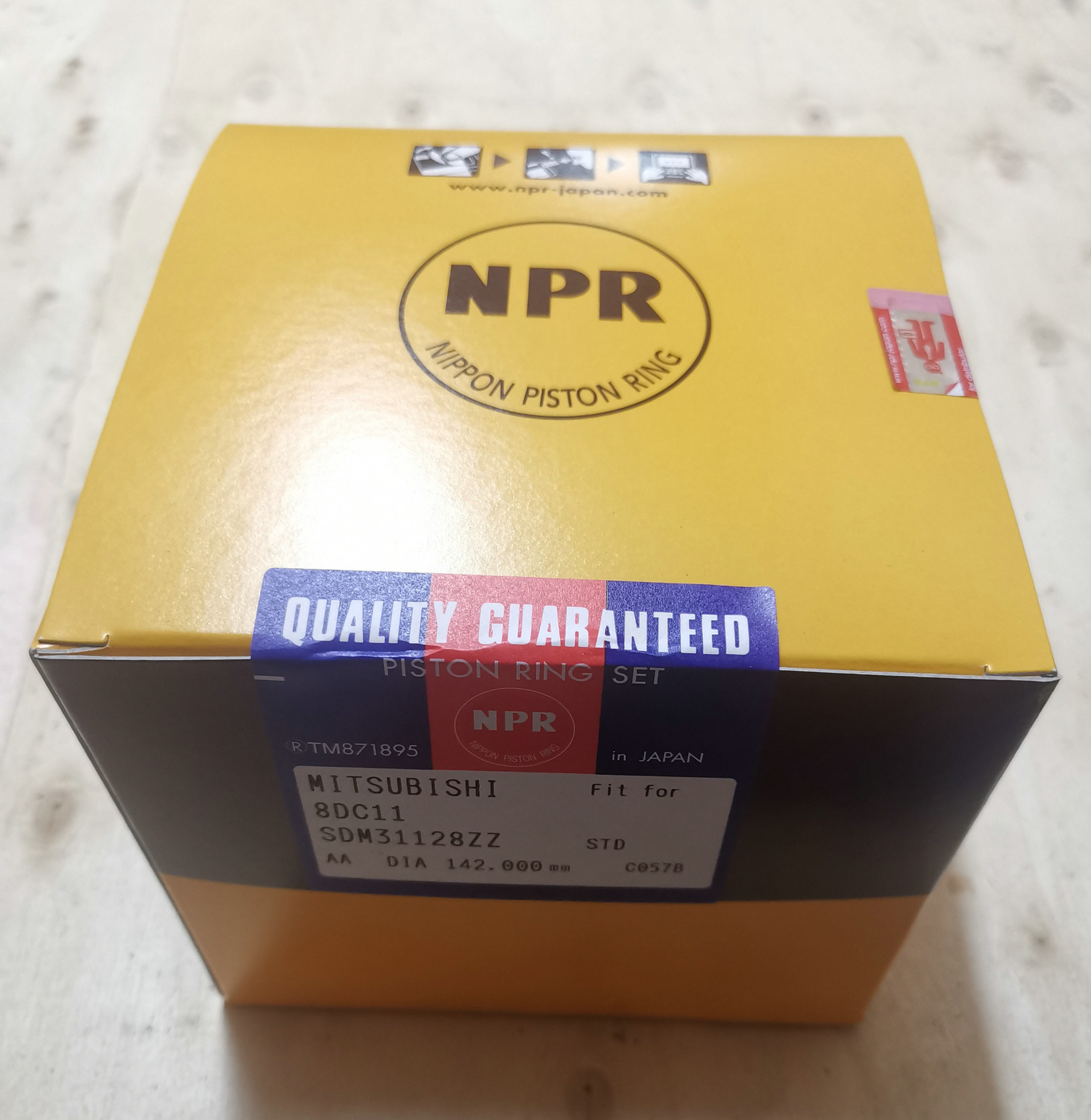

30617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: 8DC11
Minimum Order Quantity: 1 SET
Price: usd+125+SET
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 30617-50111 ME090588 NPR Catalog Code:: SDM31128ZZ / YDM31128ZZ
Reference:: 30617-50111 ME090588 Make :: MITSUBISHI
Engine Model:: 8DC11 Cyl No. :: V8
SET/CYL:: SET/CYL Delivery Time:: 2-5days
High Light:

ME090588 Piston Ring

,

30617-50111 Piston Ring

,

8DC11 Piston Ring


Product Description

30617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11





Piston Size(mm)
d1(D) h1(B) a1(T)
1st 142 3.306 5.6
2nd 142 3 5.7
3rd 142 3 5.7
Oil 142 4 4.15





30617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 030617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 130617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 230617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 330617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 430617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 530617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 630617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 730617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 830617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 930617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 1030617-50111 ME090588 Piston Ring For Mitsubishi Diesel Engine Parts 8DC11 11





“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.
