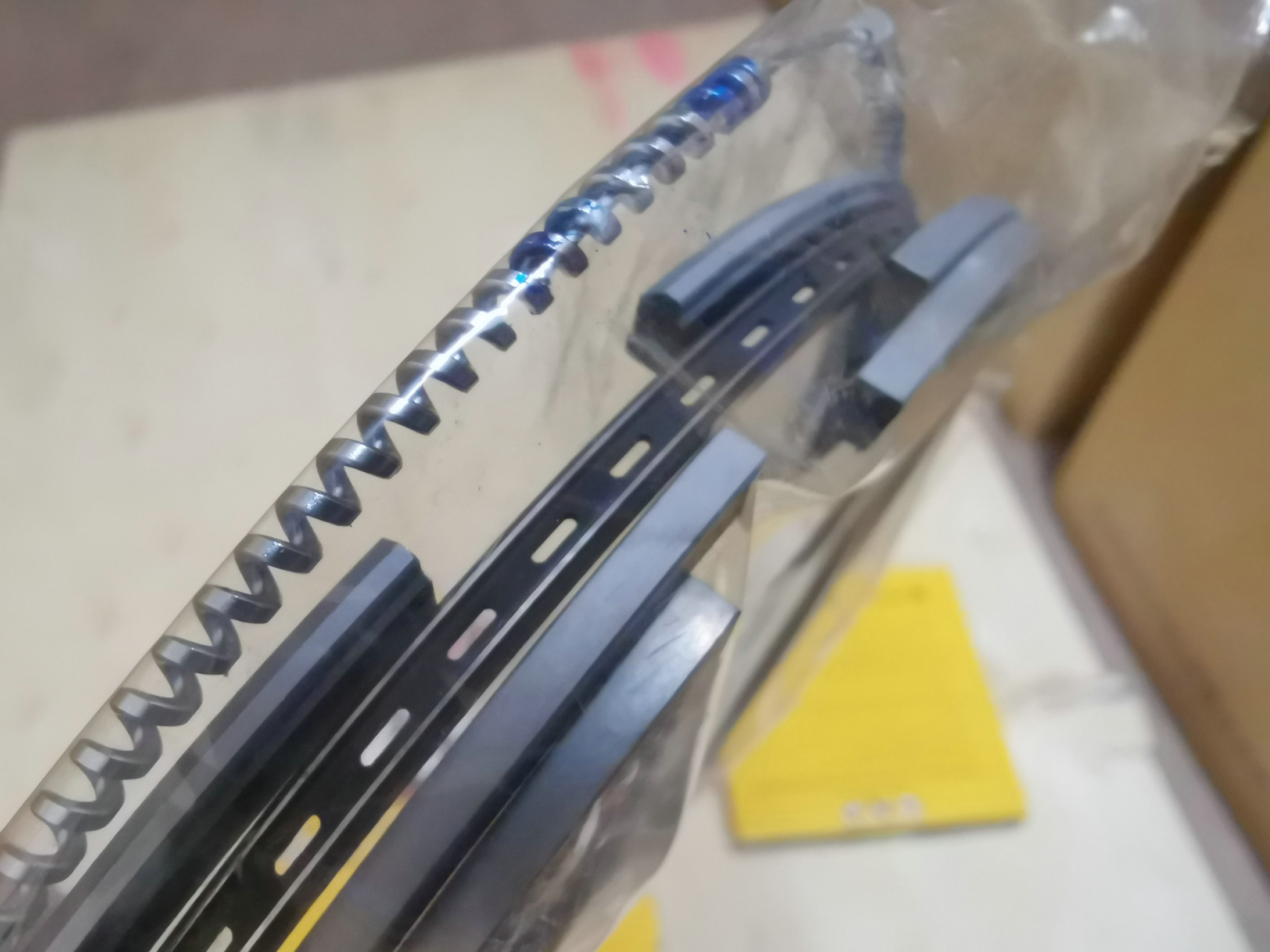

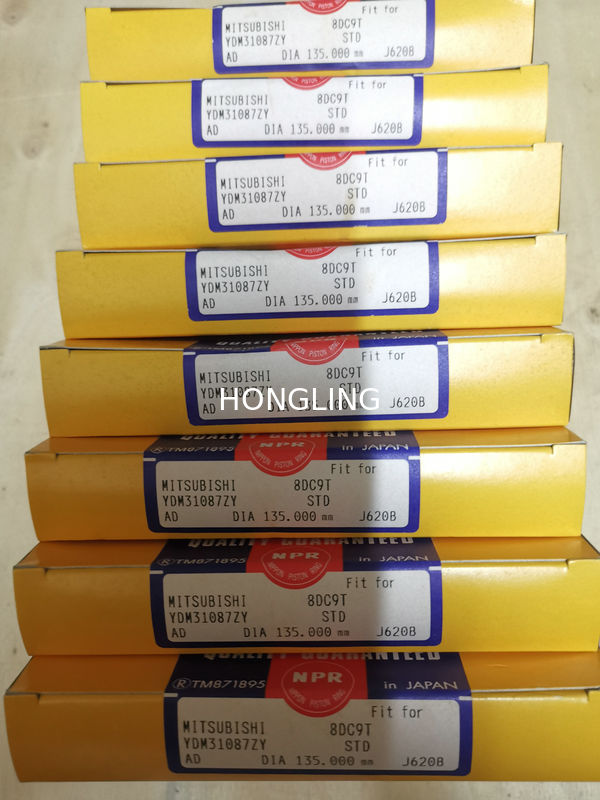

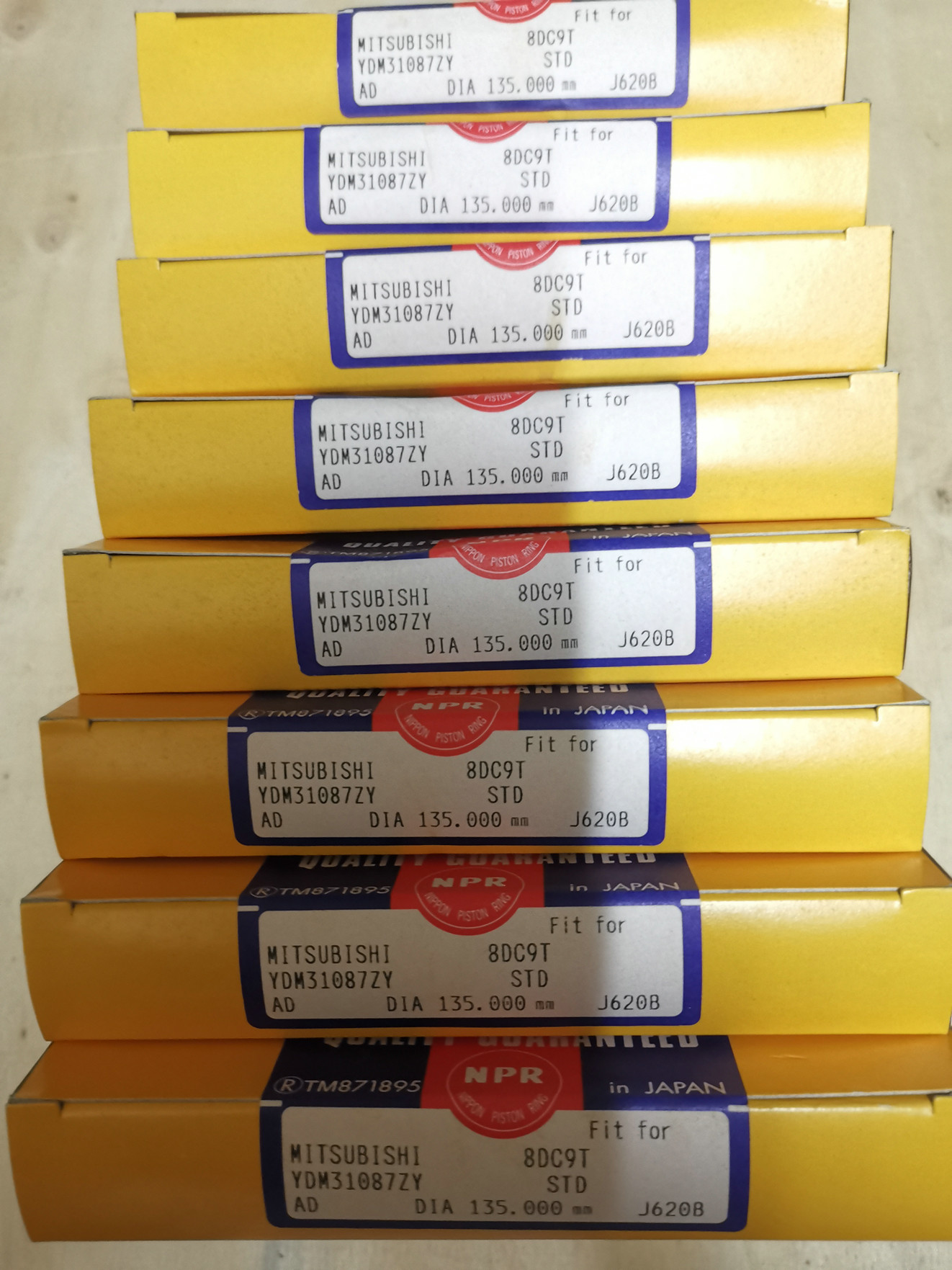

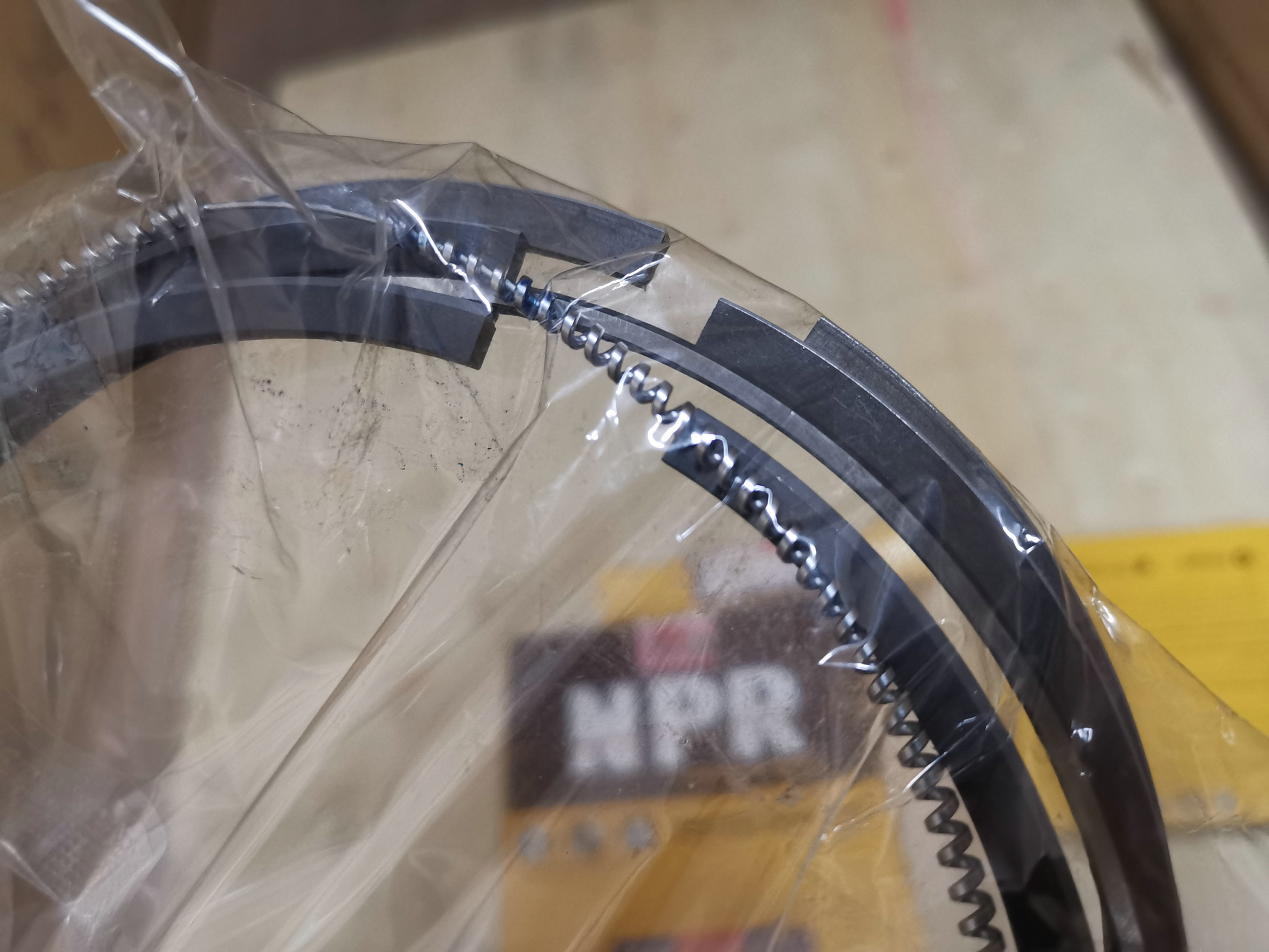

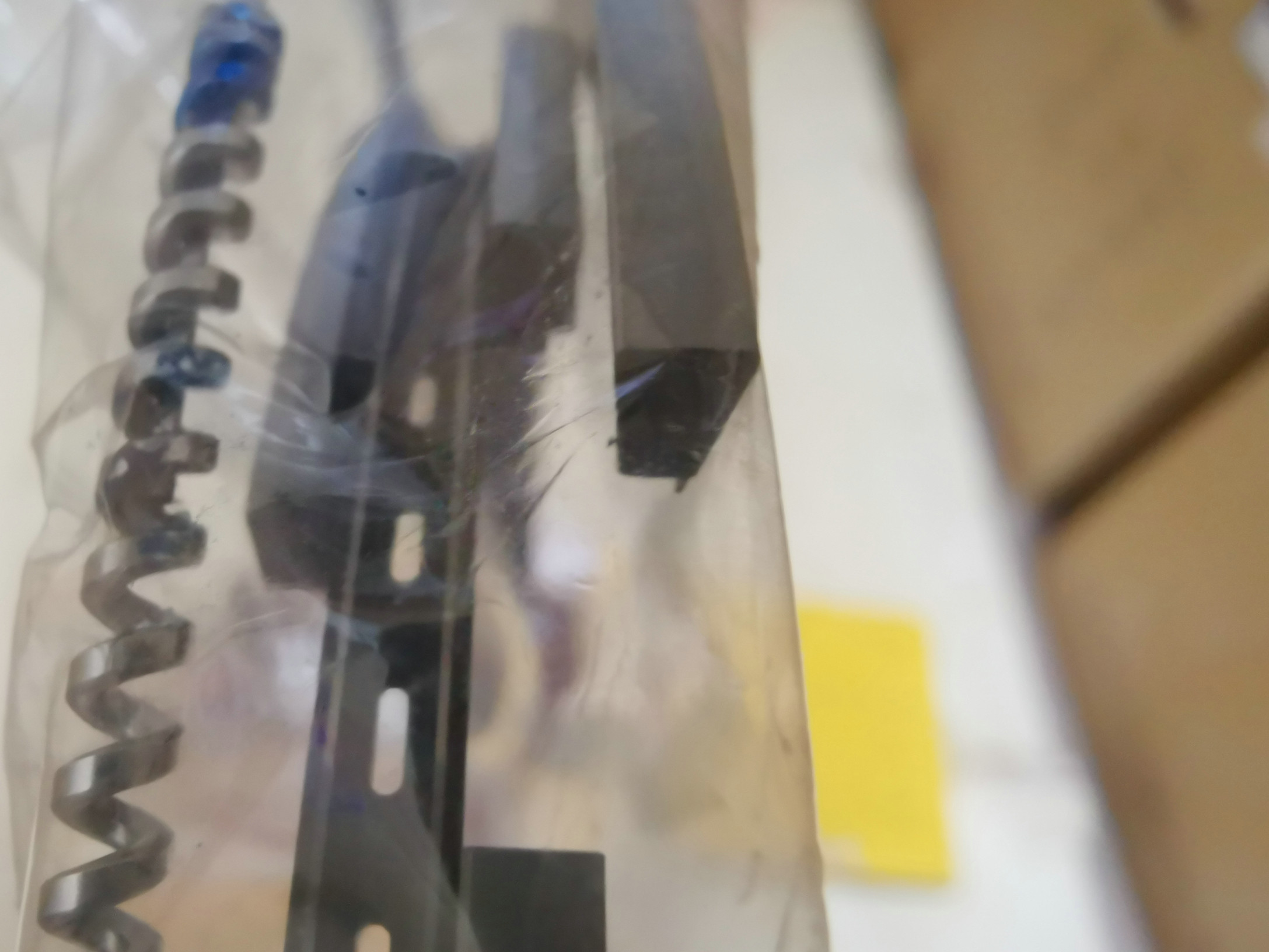

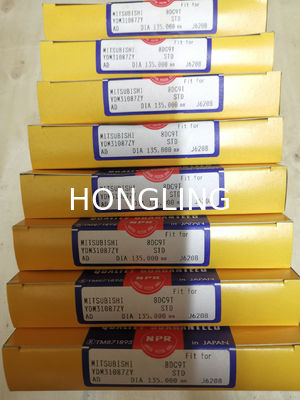

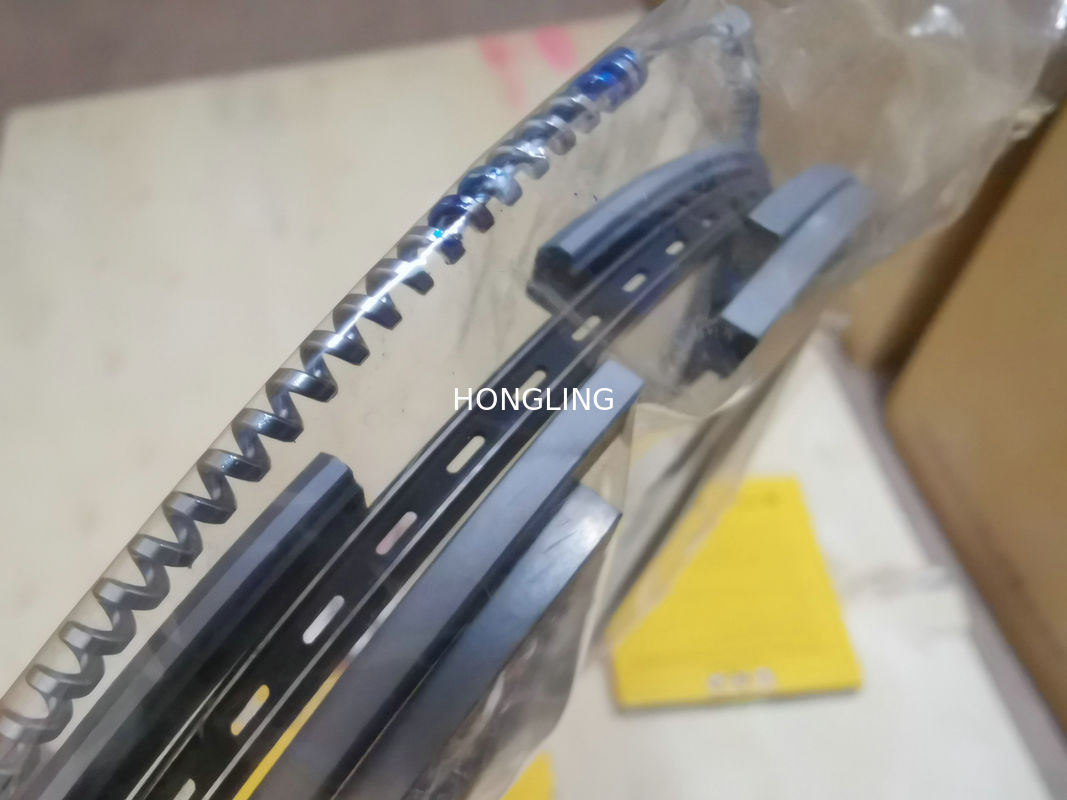

8DC9T NPR Piston Rings ME090578 For Mitsubishi Engine Parts

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: 8DC9T
Minimum Order Quantity: 1 SET
Price: usd+13+CYL
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: ME090578 NPR Catalog Code:: SDM31087ZY
Reference:: ME090578 Make :: MITSUBISHI
Engine Model:: 8DC9T Cyl No. :: V8
SET/CYL:: CYL Delivery Time:: 2-5days
High Light:

8DC9T NPR Piston Rings

,

ME090578 NPR Piston Rings


Product Description

8DC9T Piston Ring ME090578 Suitable For Mitsubishi Engine Parts







Piston Size(mm)
d1(D) h1(B) a1(T)
1st 135.0 3.306 5.4
2nd 135.0 3.0 5.5
3rd 135.0 3.0 5.5
Oil 135.0 4.0 4.35









8DC9T NPR Piston Rings ME090578 For Mitsubishi Engine Parts 08DC9T NPR Piston Rings ME090578 For Mitsubishi Engine Parts 18DC9T NPR Piston Rings ME090578 For Mitsubishi Engine Parts 2





“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.









8DC9T NPR Piston Rings ME090578 For Mitsubishi Engine Parts 3
