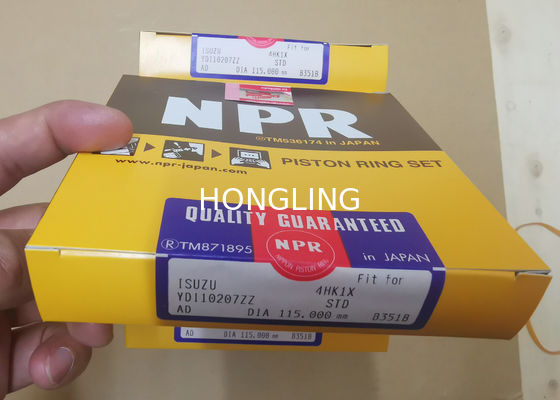

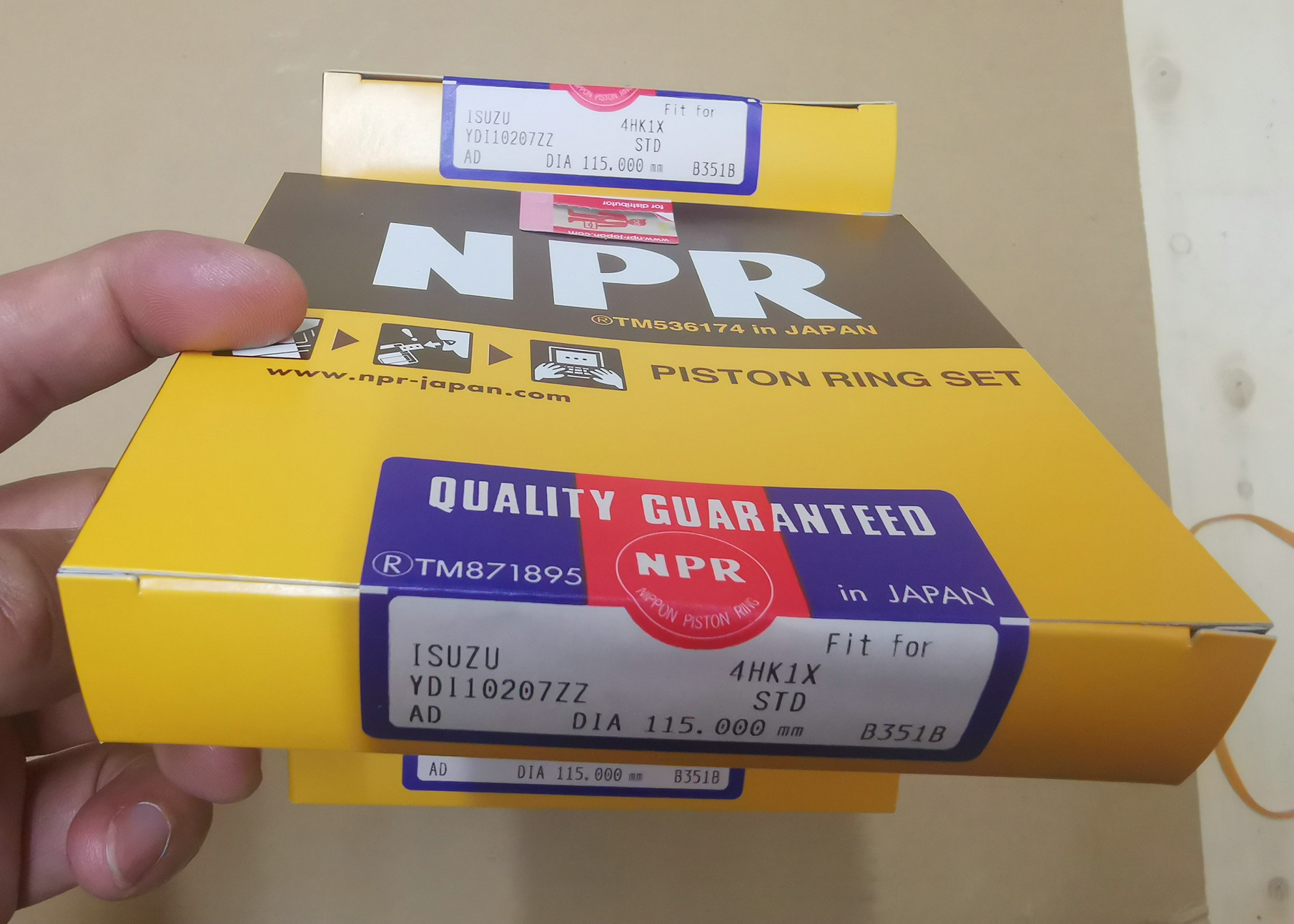

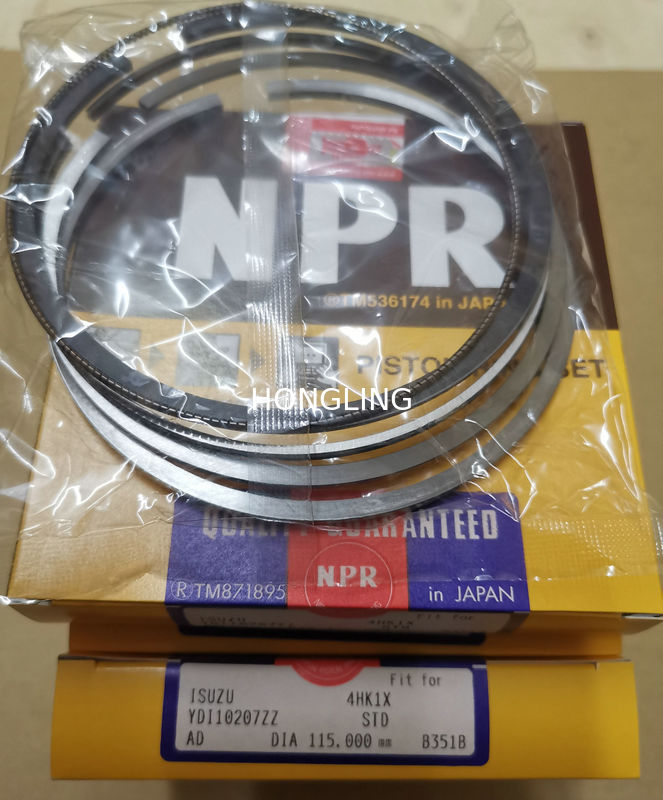

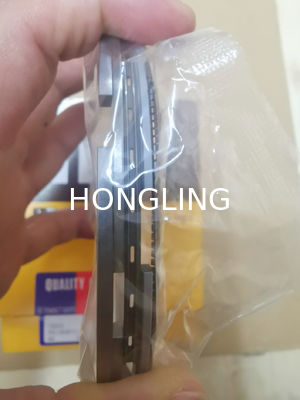

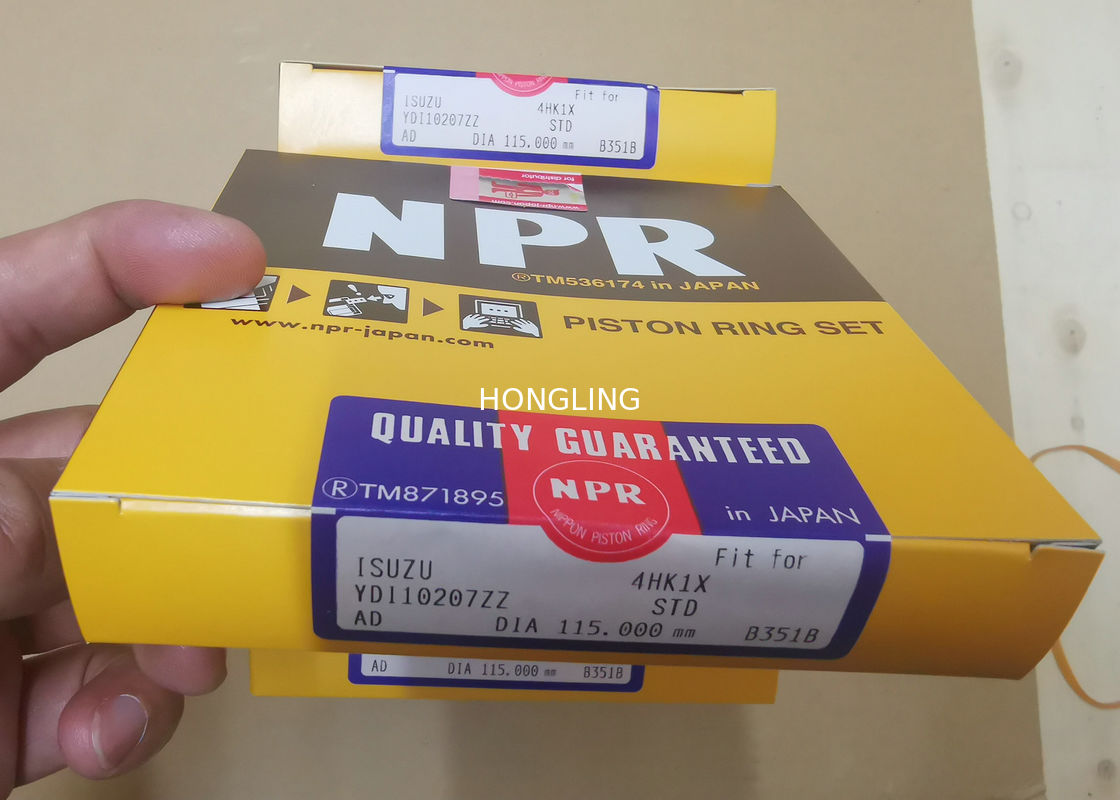

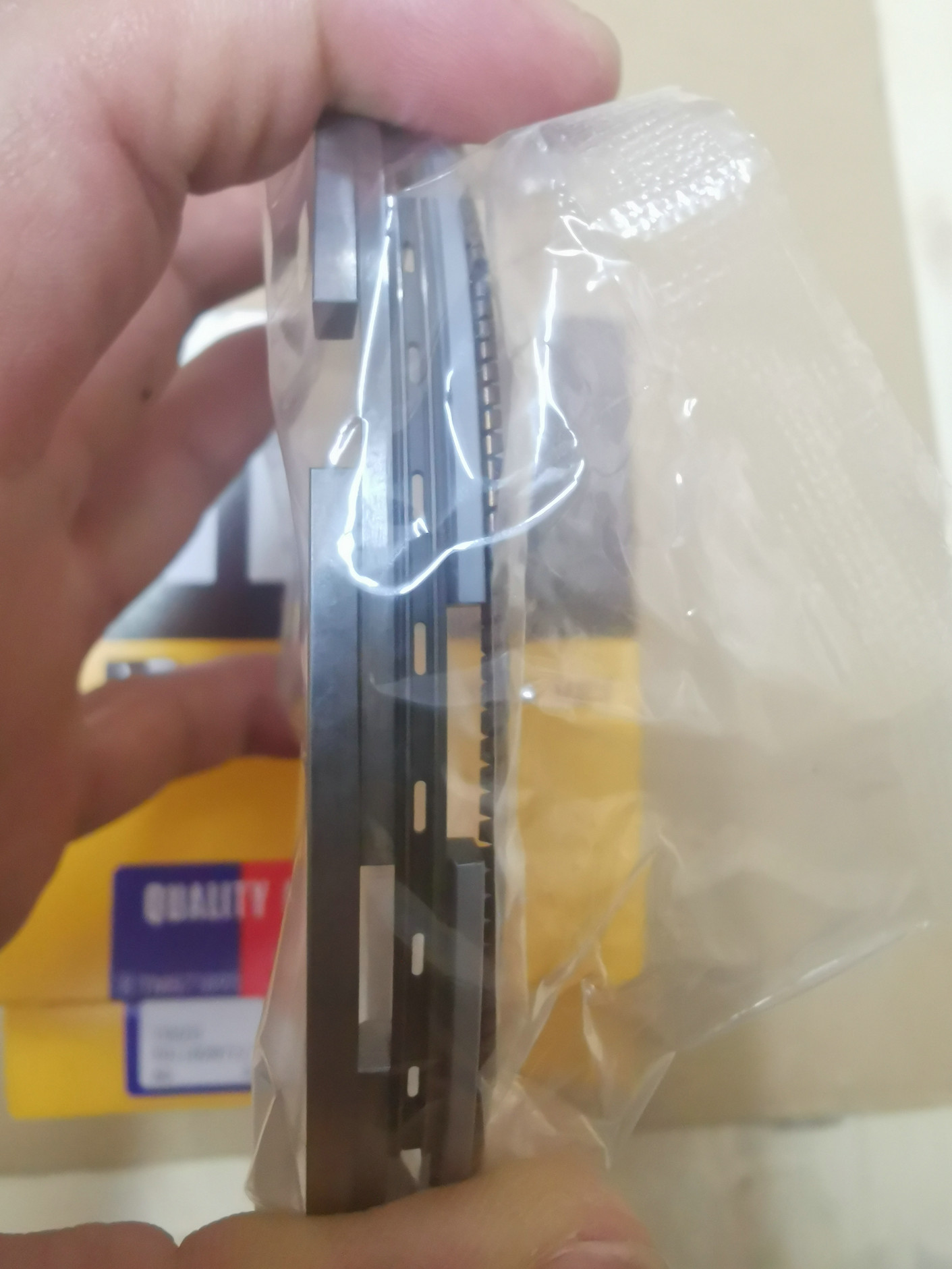

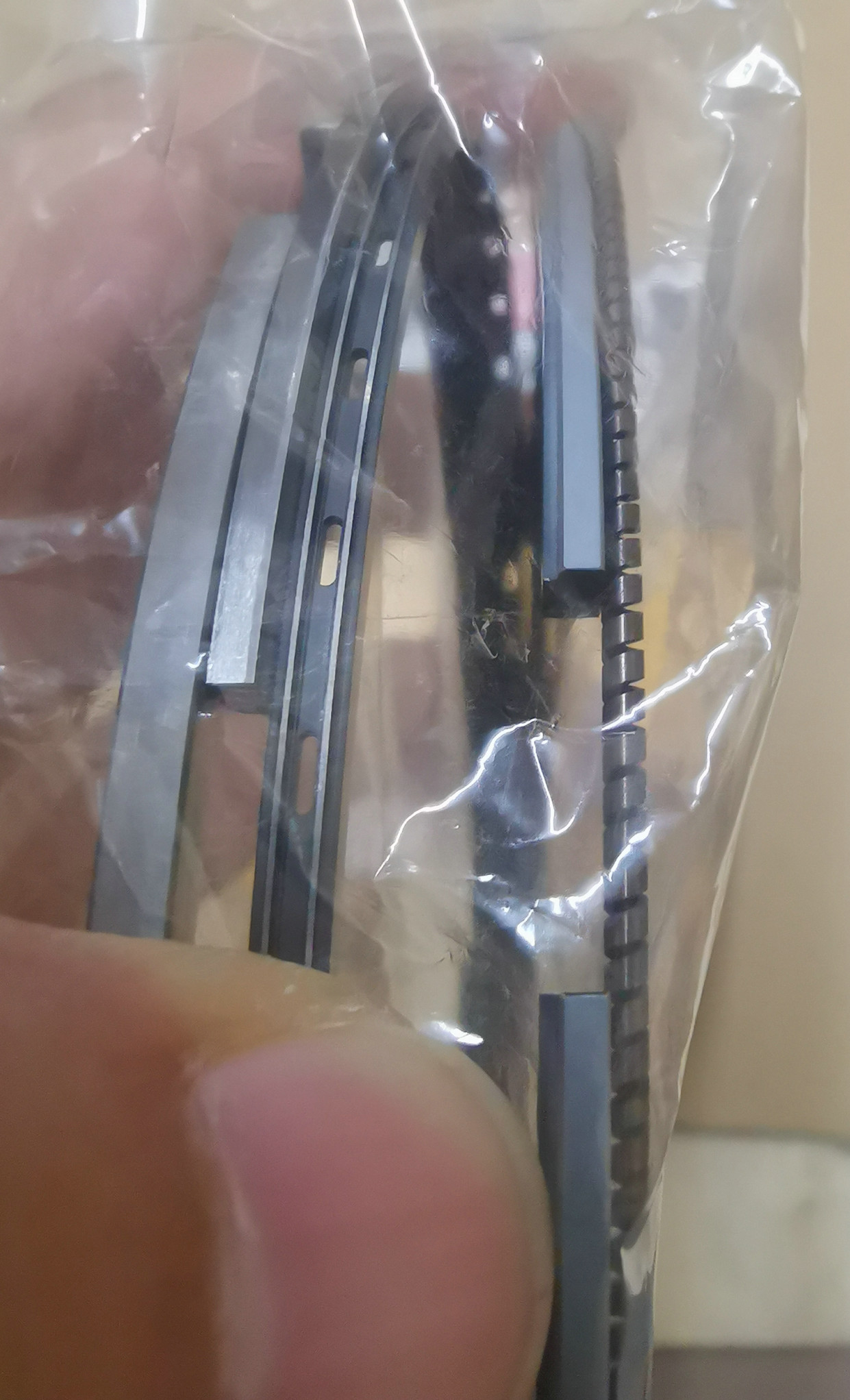

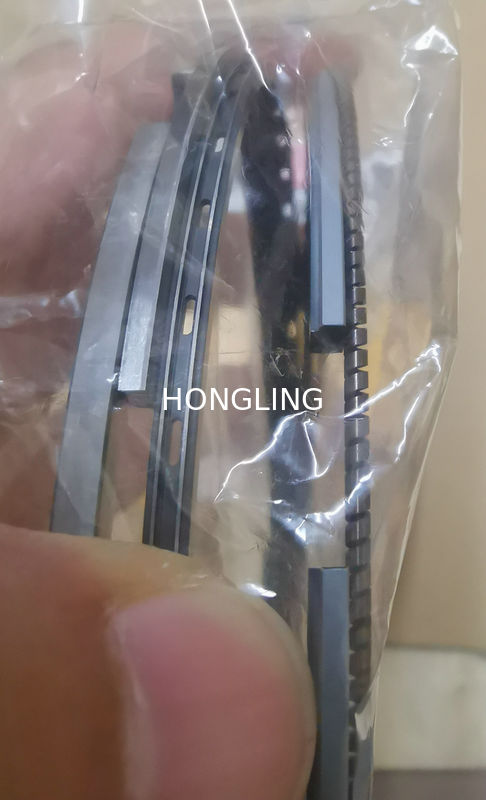

4HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: 4HK1X
Minimum Order Quantity: 1 SET
Price: usd+10.8+CYL
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 8-98017-166-0 NPR Catalog Code:: YDI10207ZZ
Reference:: 8-98017-166-0 Make :: ISUZU
Engine Model:: 4HK1X 6HK1X Cyl No. :: 4/6
SET/CYL:: CYL Delivery Time:: 2-5days
High Light:

4HK1X Piston Ring

,

8-98017-166-0 Piston Ring


Product Description

4HK1X Piston Ring 8-98017-166-0 Suitable For ISUZU Engine Parts







Piston Size(mm)
d1(D) h1(B) a1(T)
1st

115.0

2.948 4.15
2nd 115.0 2.0 4.3
3rd 115.0 2.5 4.8
Oil 115.0 3.0 3.1







4HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 04HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 14HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 24HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 34HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 44HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 54HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 6





“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.









4HK1X Piston Ring 8-98017-166-0 For ISUZU Engine Parts 7
