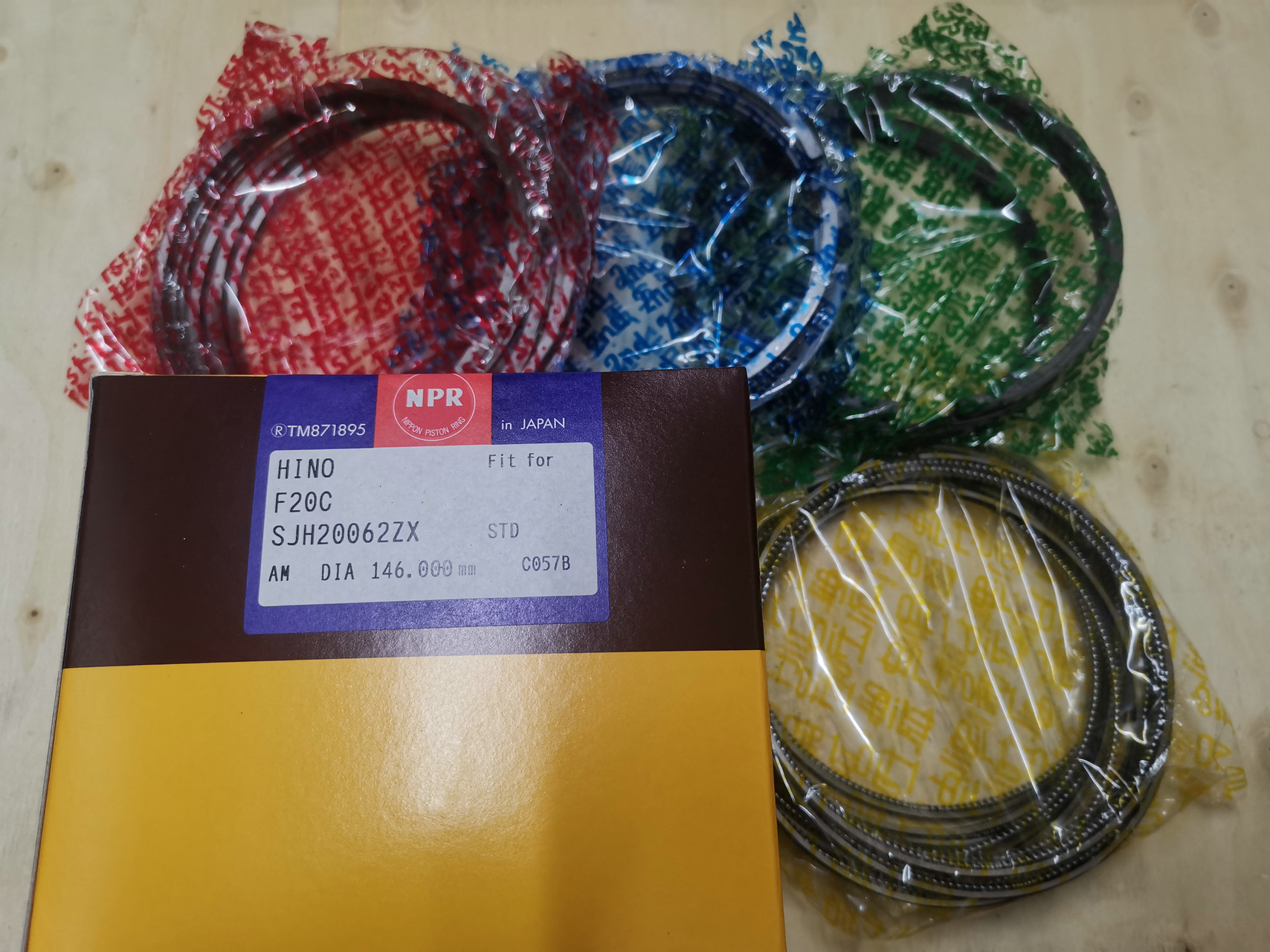

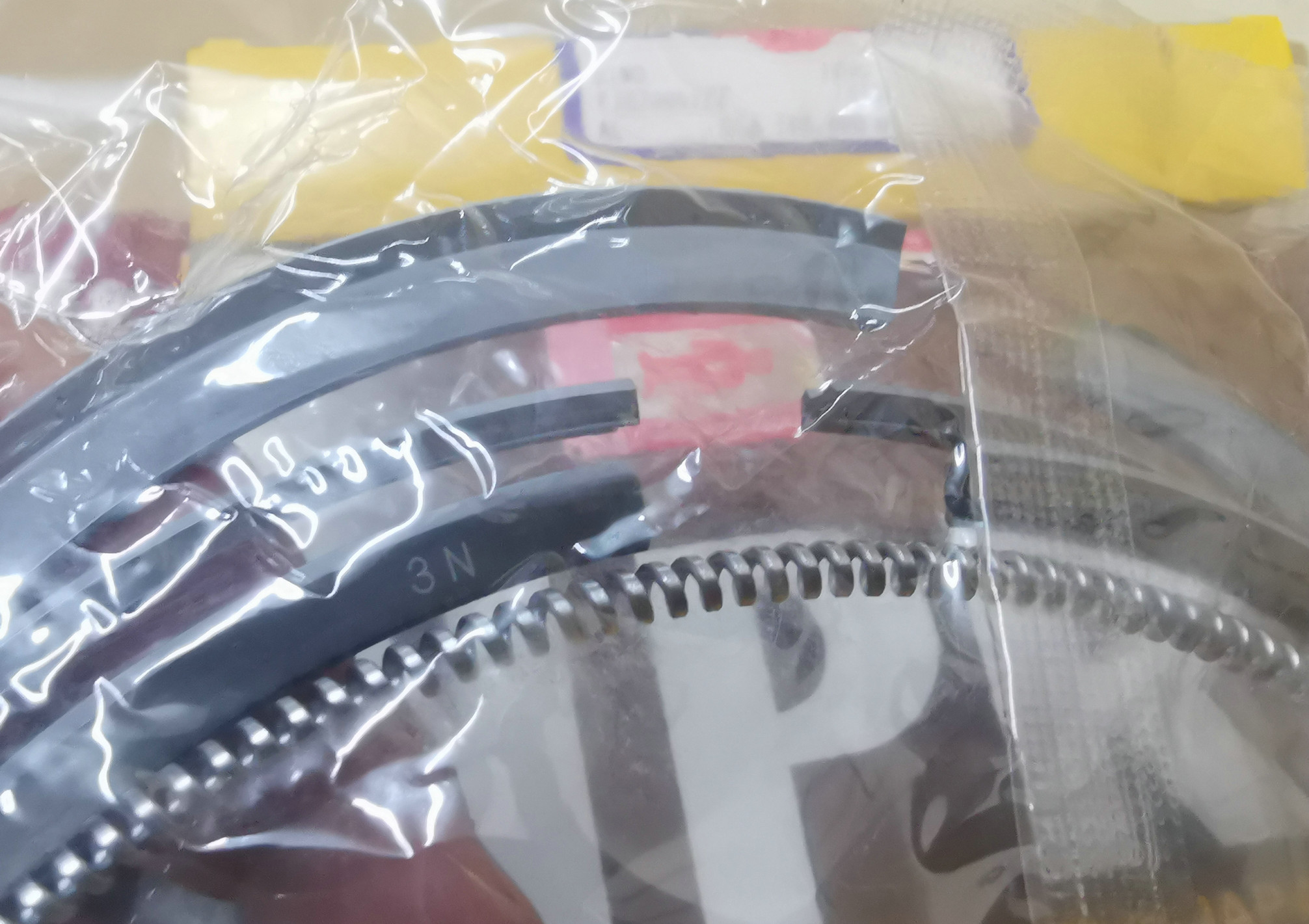

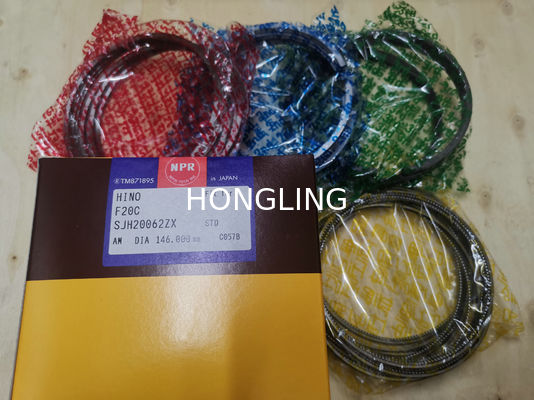

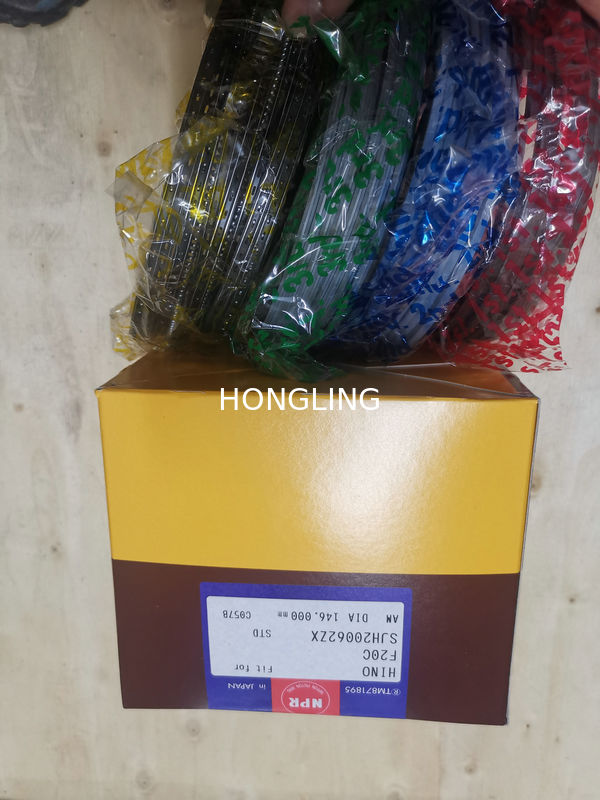

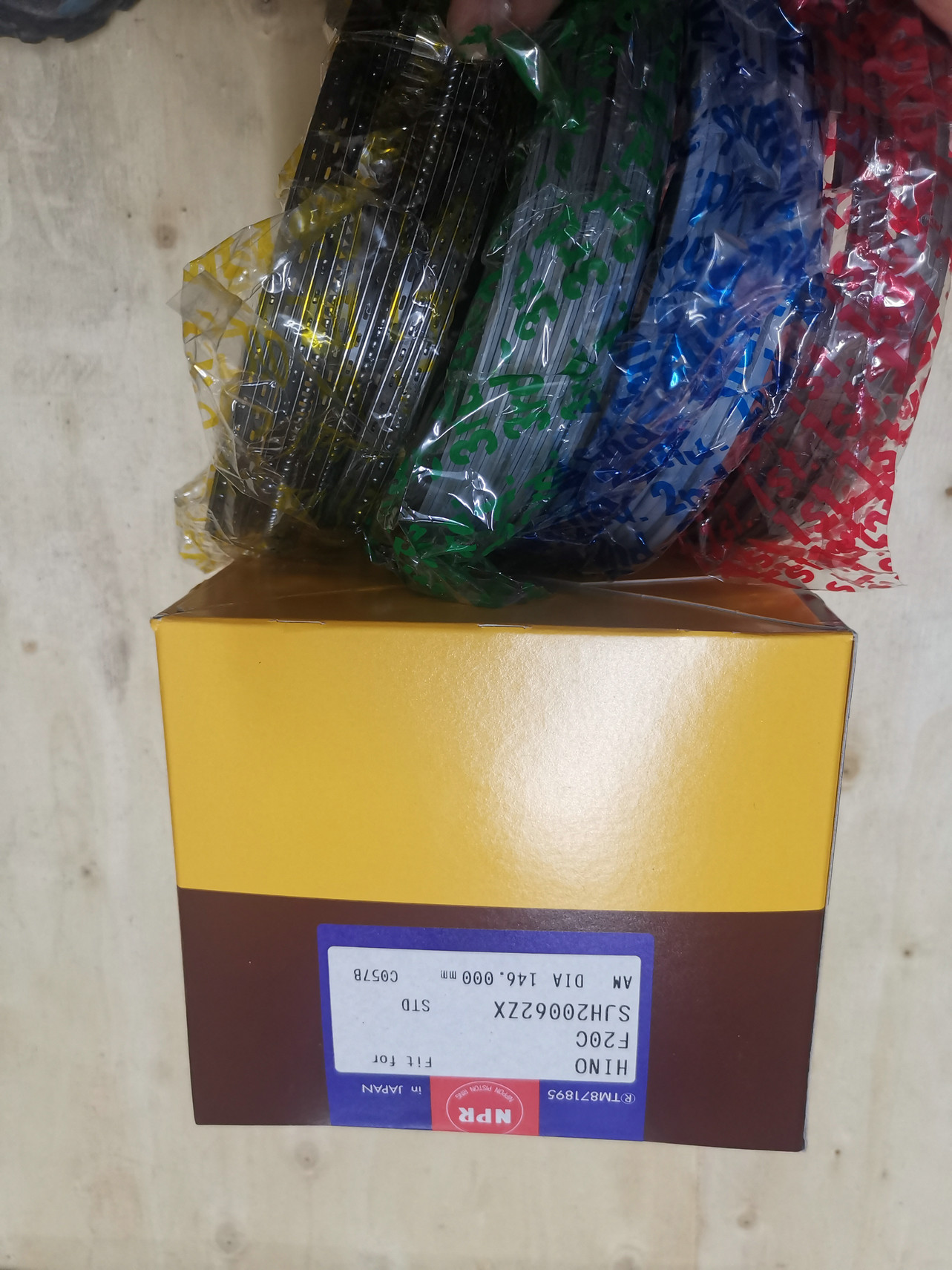

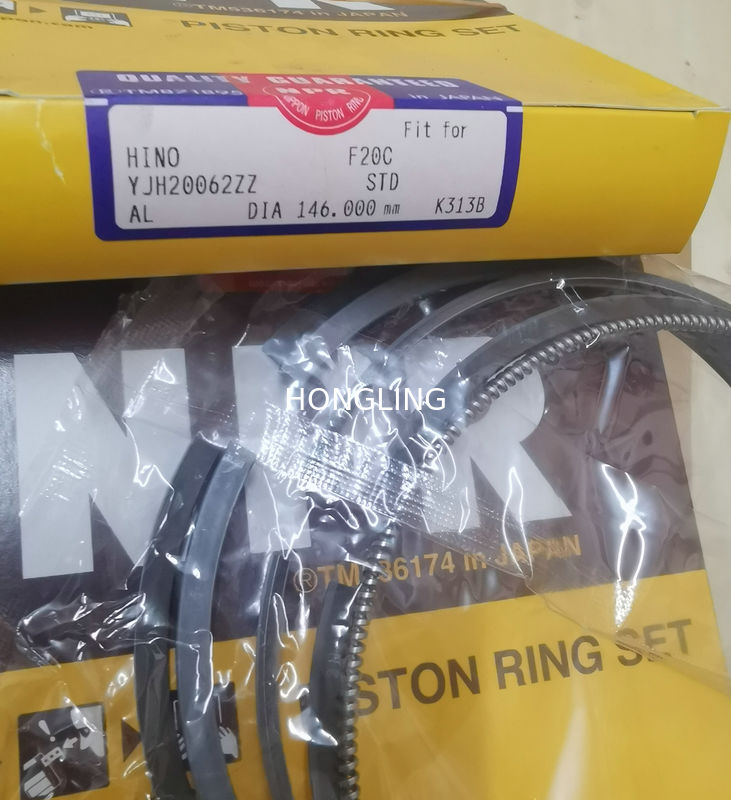

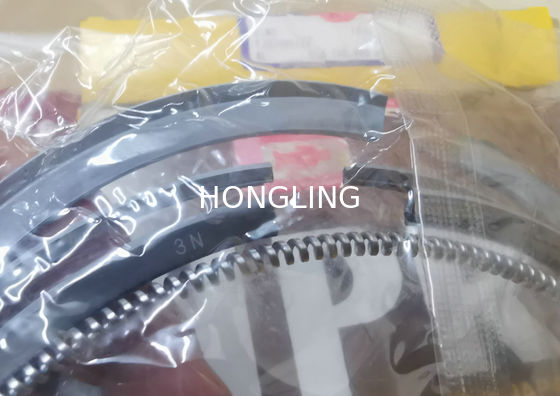

F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: F20C
Minimum Order Quantity: 1 SET
Price: usd+192.5+SET
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 13011-2792A 13011-3250A 13019-1710A(cyl) NPR Catalog Code:: SJH20062ZX YJH20062ZX
Reference:: 13011-2792A 13011-3250A 13019-1710A(cyl) Make :: HINO
Engine Model:: F20C Cyl No. :: V8
SET/CYL:: SET/CYL Delivery Time:: 2-5days
High Light:

F20C Piston Ring

,

13011-2792A Piston Ring

,

13019-1710A Piston Ring


Product Description

F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A(cyl) Suitable For HINO Engine Parts





Piston Size(mm)
d1(D) h1(B) a1(T)
1st 146.0 3.306 4.7
2nd 146.0 3.5 5.6
3rd 146.0 3.5 5.7
Oil 146.0 5.0 4.95





F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 0F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 1F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 2F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 3F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 4F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 5F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 6F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 7F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 8F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 9





“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.









F20C Piston Ring 13011-2792A 13011-3250A 13019-1710A For HINO Engine Parts 10
