F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: HINO
Minimum Order Quantity: 1 SET
Price: usd+140+SET
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 13011-2810A 13011-3150A 13019-1700A NPR Catalog Code:: SDH20070ZZ
Reference:: 13011-2810A 13011-3150A 13019-1700A Make :: HINO
Engine Model:: F17E F17C Cyl No. :: V8
SET/CYL:: SET Delivery Time:: 2-5days
High Light:

13011-2810A Diesel Engine Piston Ring

,

13019-1700A Diesel Engine Piston Ring

,

F17E Diesel Engine Piston Ring


Product Description

F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts





Piston Size(mm)
d1(D) h1(B) a1(T)
1st 139.0 3.306 4.7
2nd 139.0 3.5 5.5
3rd 139.0 3.5 5.5
Oil 139.0 5.0 4.95

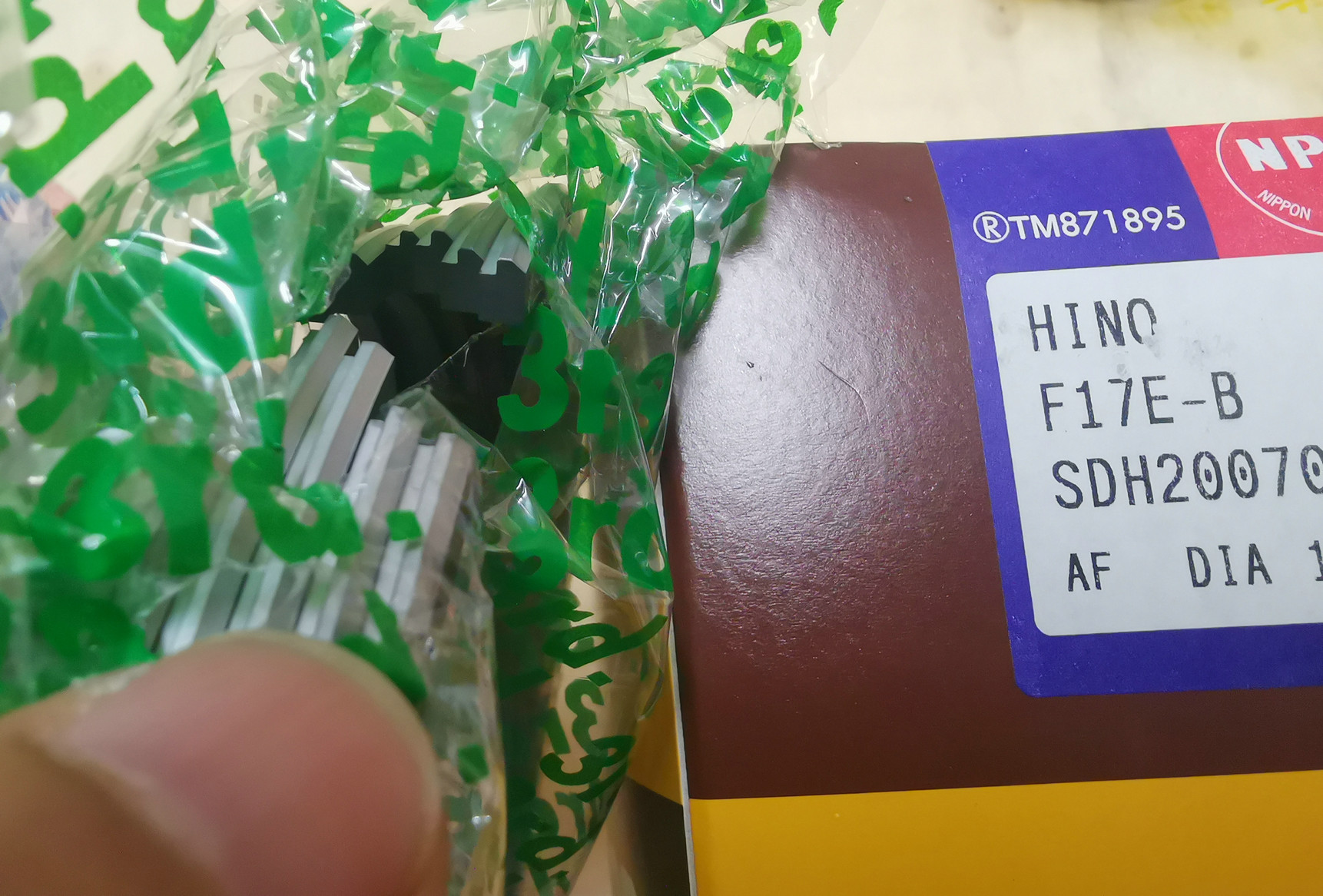

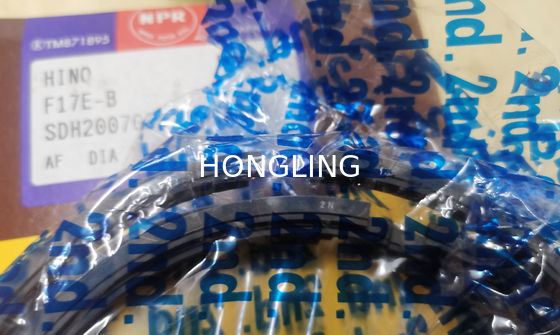

F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts 0F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts 1F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts 2F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts 3F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts 4





“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.









F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts 5
