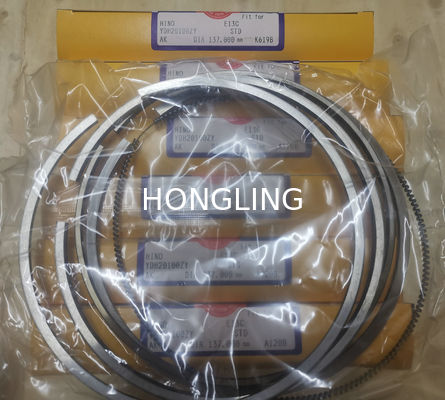

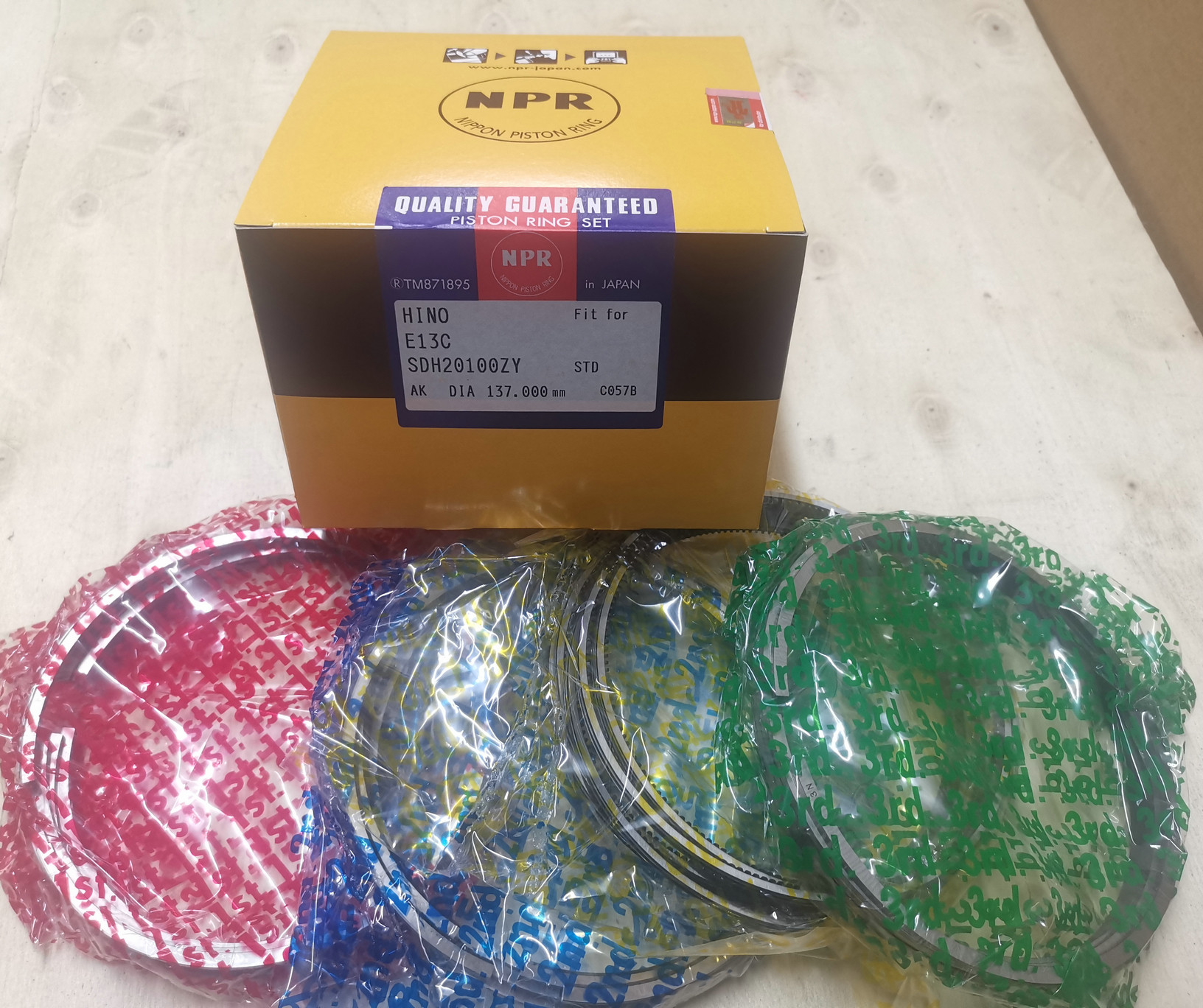

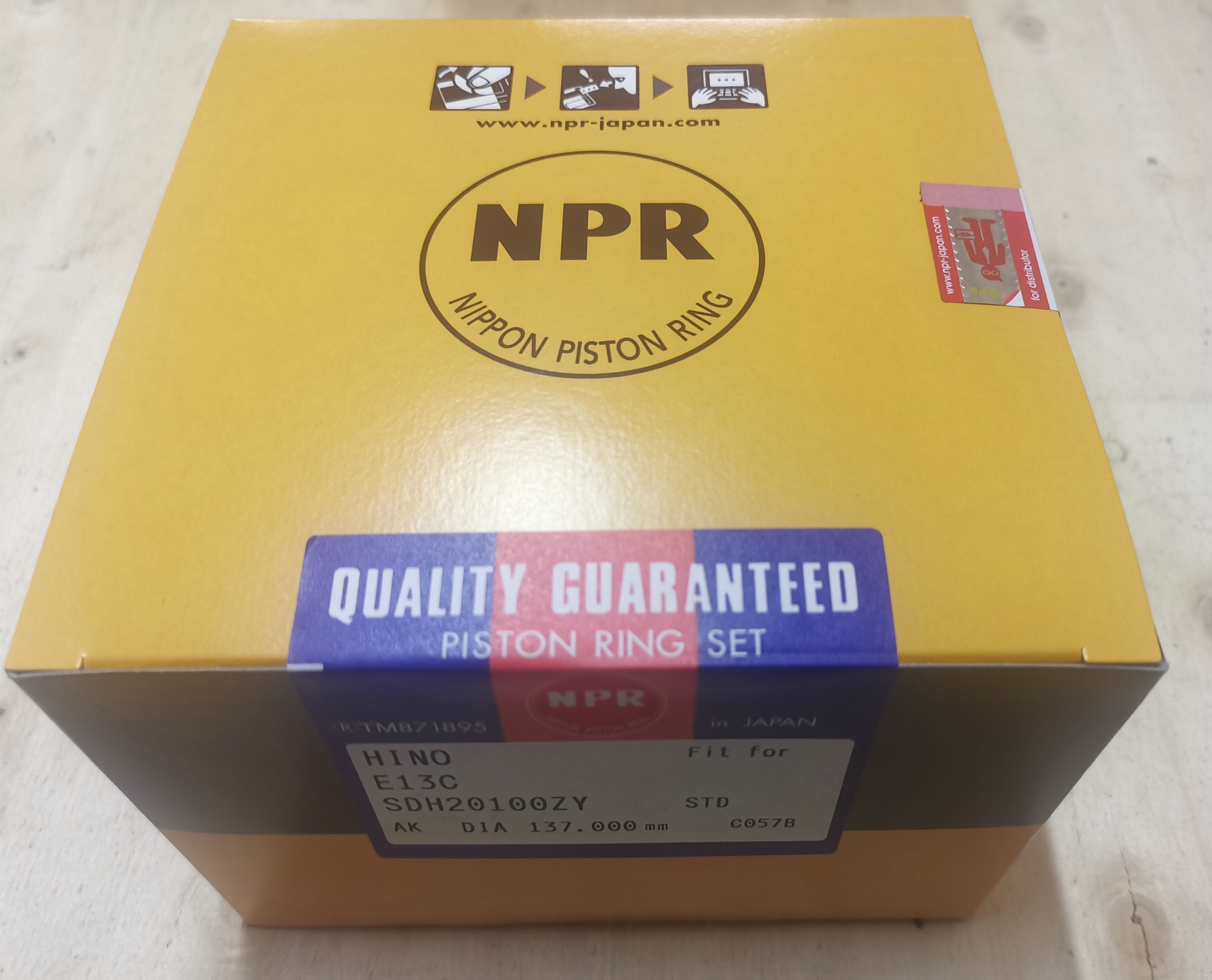

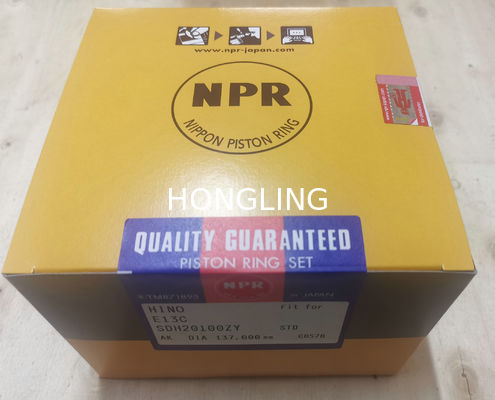

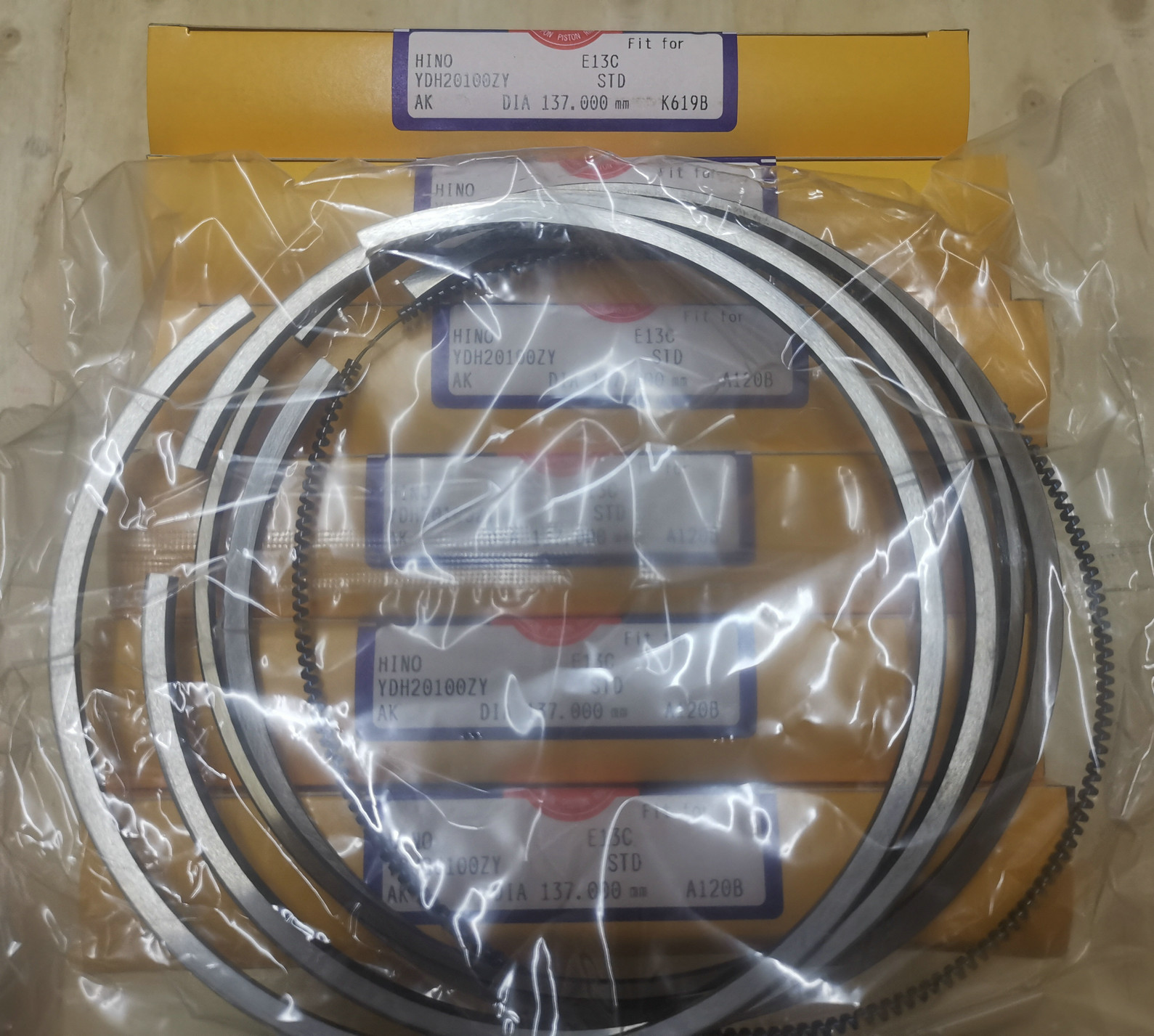

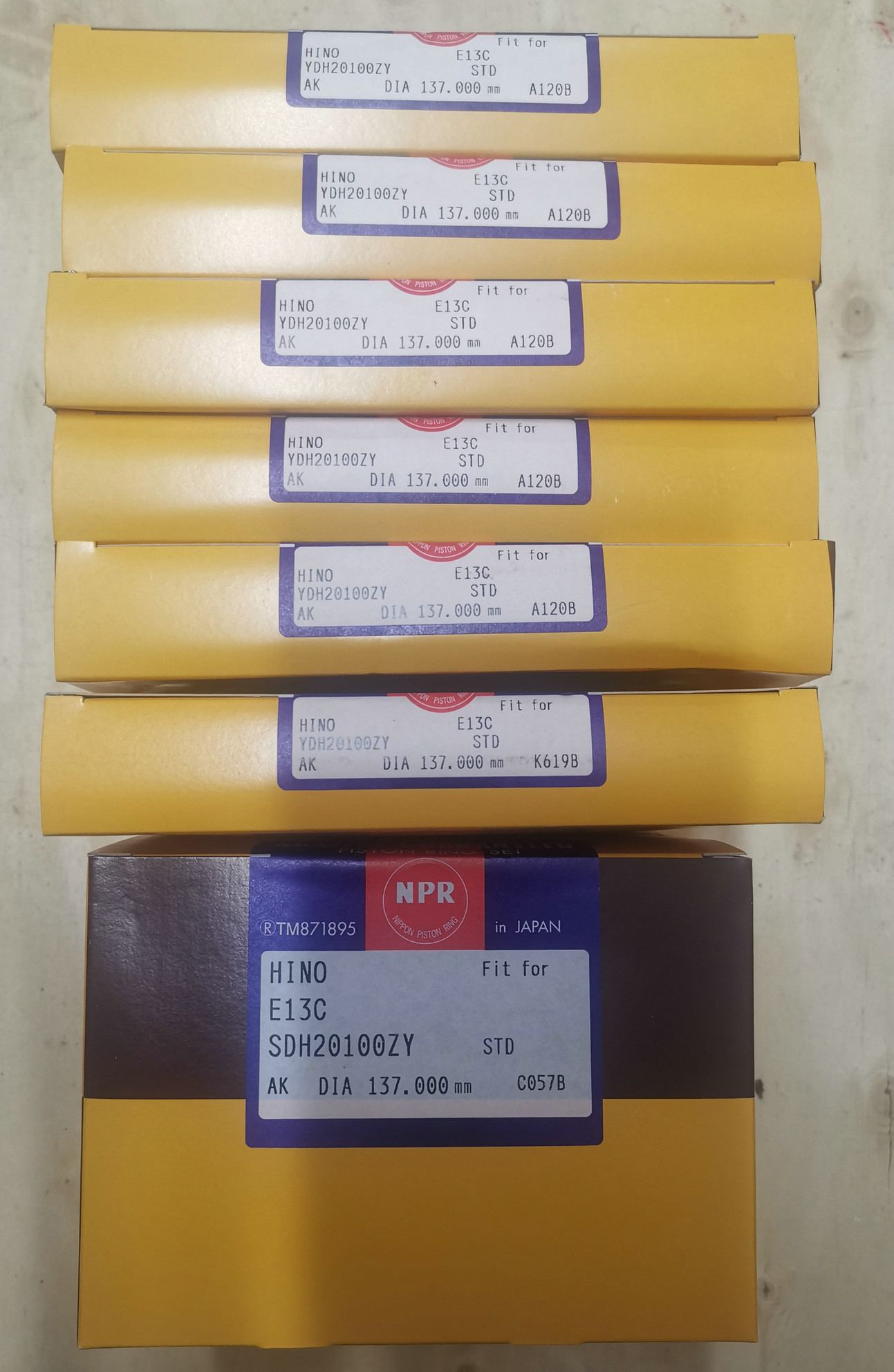

E13C Piston Ring 13011-4010A For HINO Engine Parts

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: E13C
Minimum Order Quantity: 1 SET
Price: usd+130+SET
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 13011-4010A NPR Catalog Code:: SDH20100ZY / YDH20100ZY
Reference:: 13011-4010A Make :: HINO
Engine Model:: E13C Cyl No. :: 6
SET/CYL:: SET/CYL Delivery Time:: 2-5days
High Light:

E13C Piston Ring

,

Piston Ring 13011-4010A


Product Description

E13C Piston Ring 13011-4010A Suitable For HINO Engine Parts







Piston Size(mm)
d1(D) h1(B) a1(T)
1st 137.0 3.306 4.1
2nd 137.0 2.806 4.95
3rd 137.0 2.5 4.5
Oil 137.0 4.0 4.4







E13C Piston Ring 13011-4010A For HINO Engine Parts 0E13C Piston Ring 13011-4010A For HINO Engine Parts 1E13C Piston Ring 13011-4010A For HINO Engine Parts 2E13C Piston Ring 13011-4010A For HINO Engine Parts 3E13C Piston Ring 13011-4010A For HINO Engine Parts 4E13C Piston Ring 13011-4010A For HINO Engine Parts 5E13C Piston Ring 13011-4010A For HINO Engine Parts 6E13C Piston Ring 13011-4010A For HINO Engine Parts 7E13C Piston Ring 13011-4010A For HINO Engine Parts 8E13C Piston Ring 13011-4010A For HINO Engine Parts 9E13C Piston Ring 13011-4010A For HINO Engine Parts 10





“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.









E13C Piston Ring 13011-4010A For HINO Engine Parts 11
