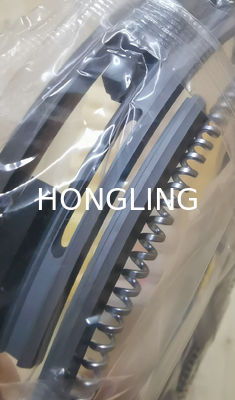

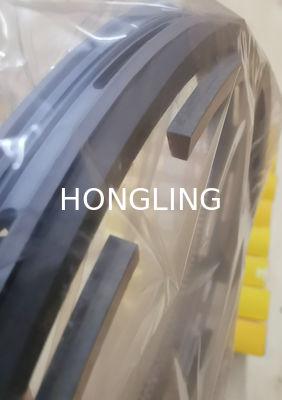

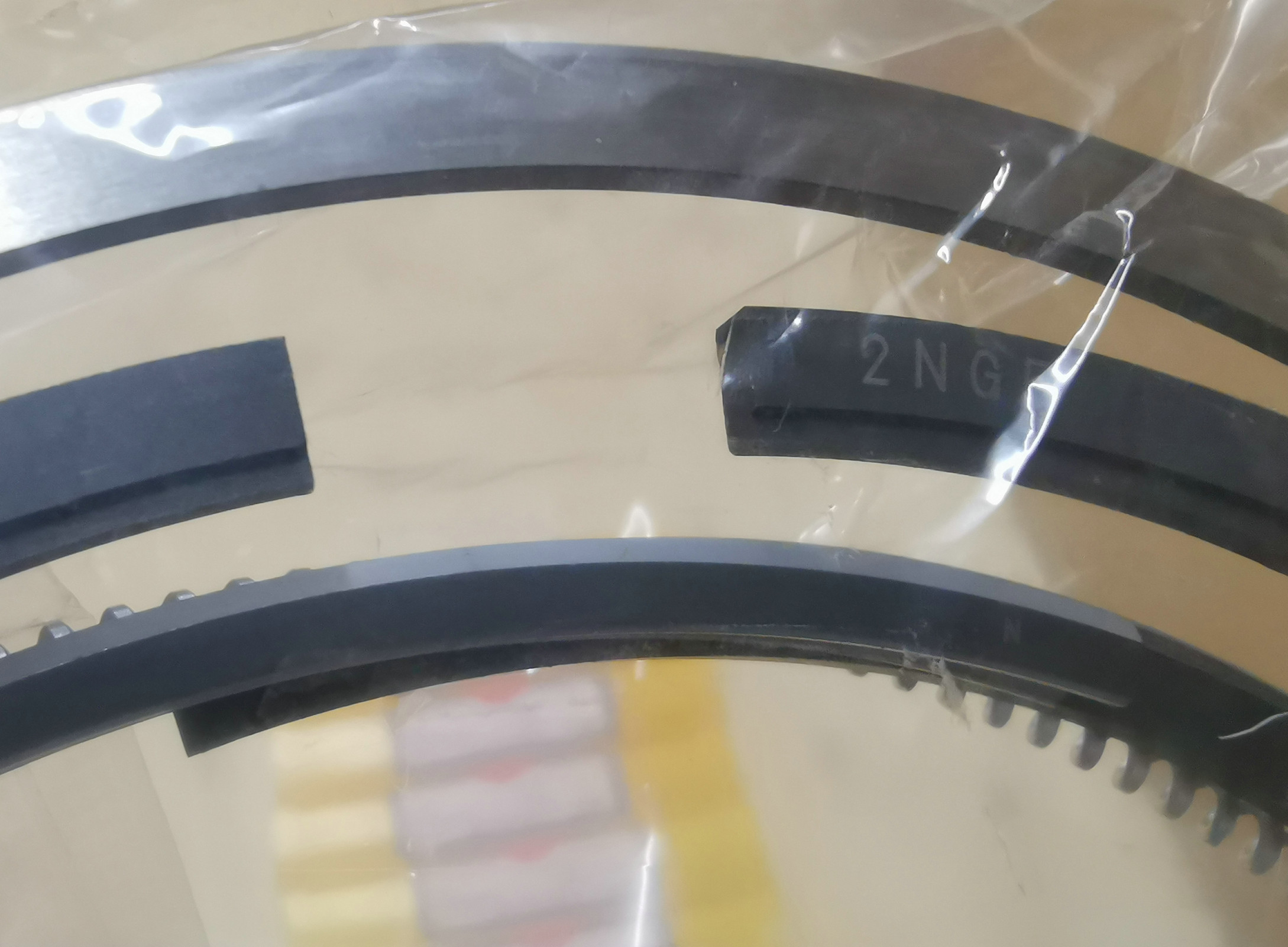

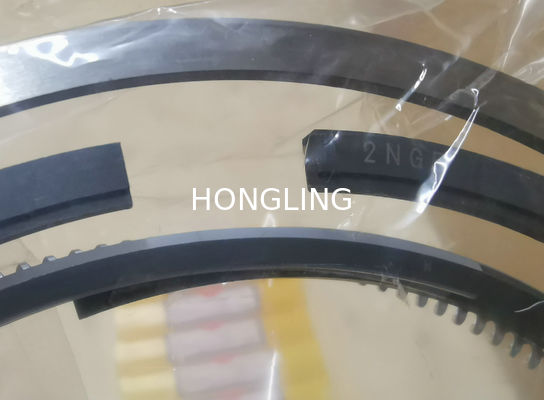

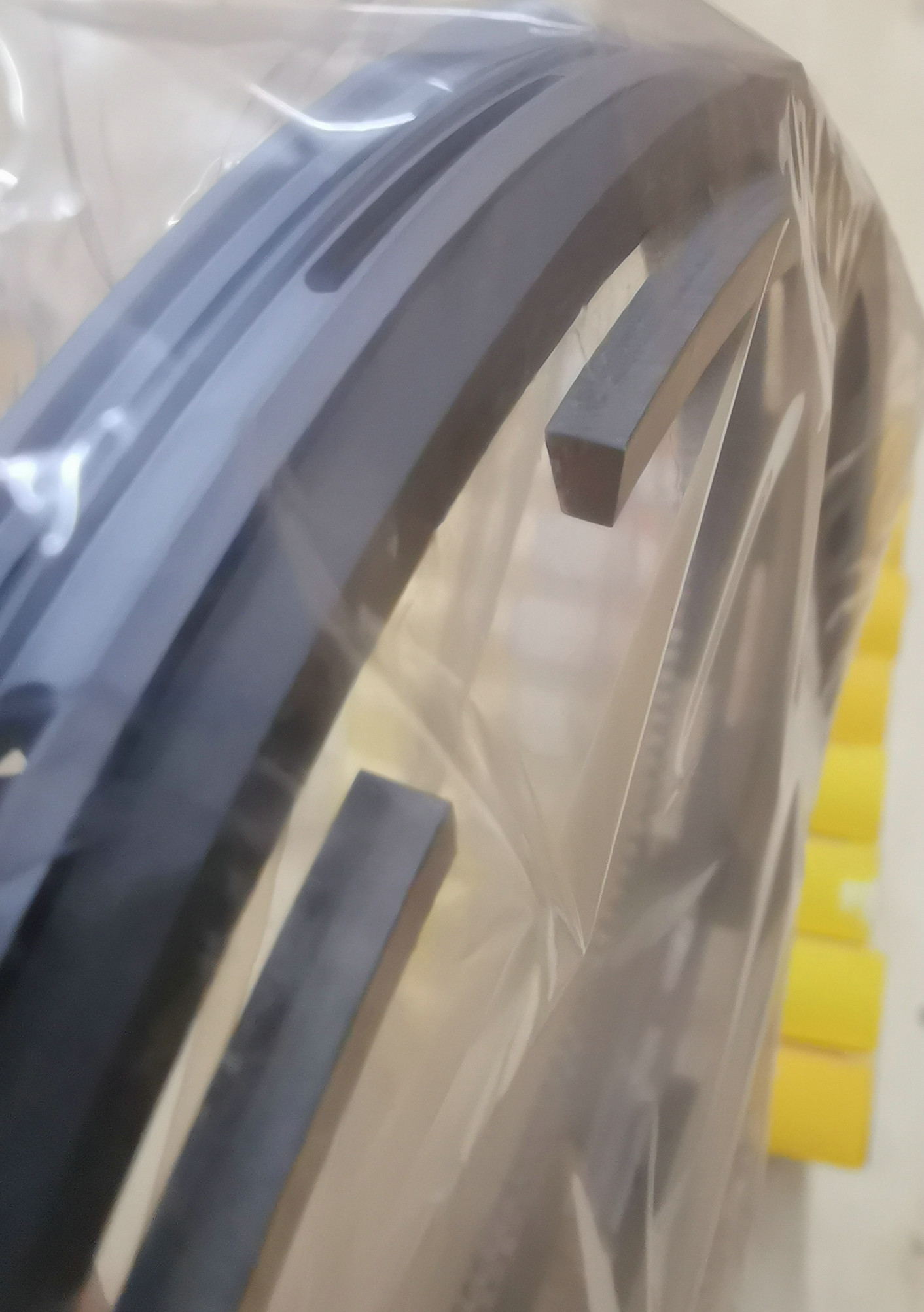

EG100 EF550 NPR Piston Rings 13011-1131 13011-1131B 13011-1460 For HINO Engine Parts

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: EG100 EF550
Minimum Order Quantity: 1 SET
Price: usd+15+CYL
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new

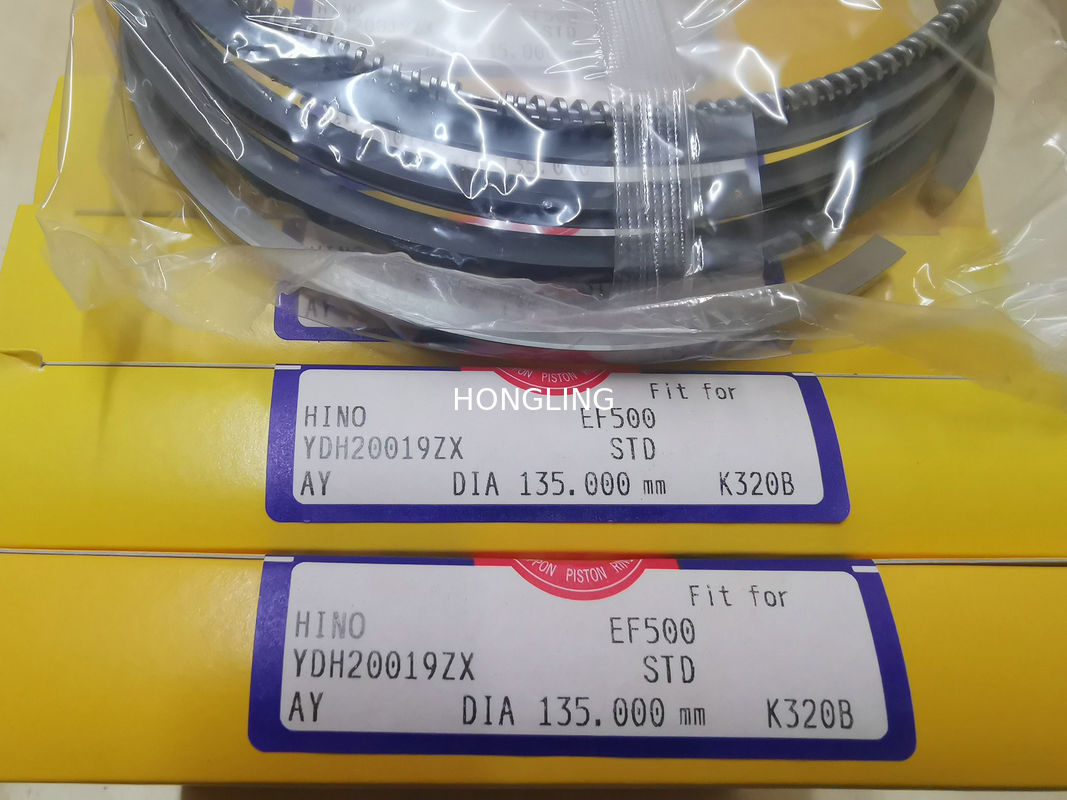

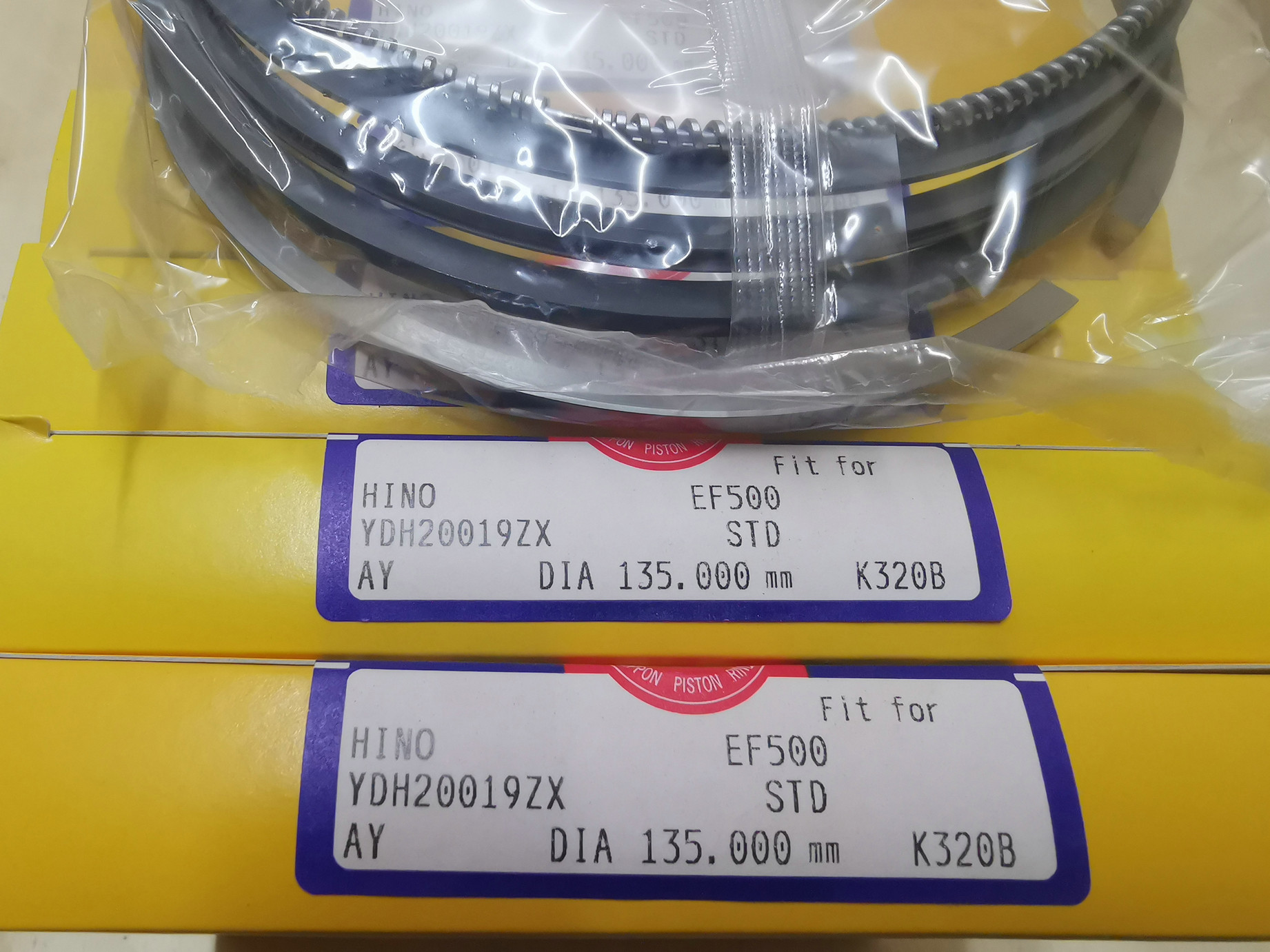

OEM No:: 13011-1121B 13011-1122 13011-2170B 13011-2180 13019-1610A(cyl) NPR Catalog Code:: YDH20019ZX
Reference:: 13011-1121B 13011-1122 13011-2170B 13011-2180 13019-1610A(cyl) Make :: HINO
Engine Model:: EG100 EF550 Cyl No. :: V8
SET/CYL:: CYL Delivery Time:: 2-5days
High Light:

EF550 NPR Piston Rings

,

13011-1131B NPR Piston Rings

,

13011-1460 NPR Piston Rings


Product Description

EG100 EF550 Piston Ring 13011-1131 13011-1131B 13011-1460 Suitable For HINO Engine Parts





Piston Size(mm)
d1(D) h1(B) a1(T)
1st 135.0 3.306 4.7
2nd 135.0 3.5 5.4
3rd 135.0 3.5 5.4
Oil 135.0 6.0 5.5

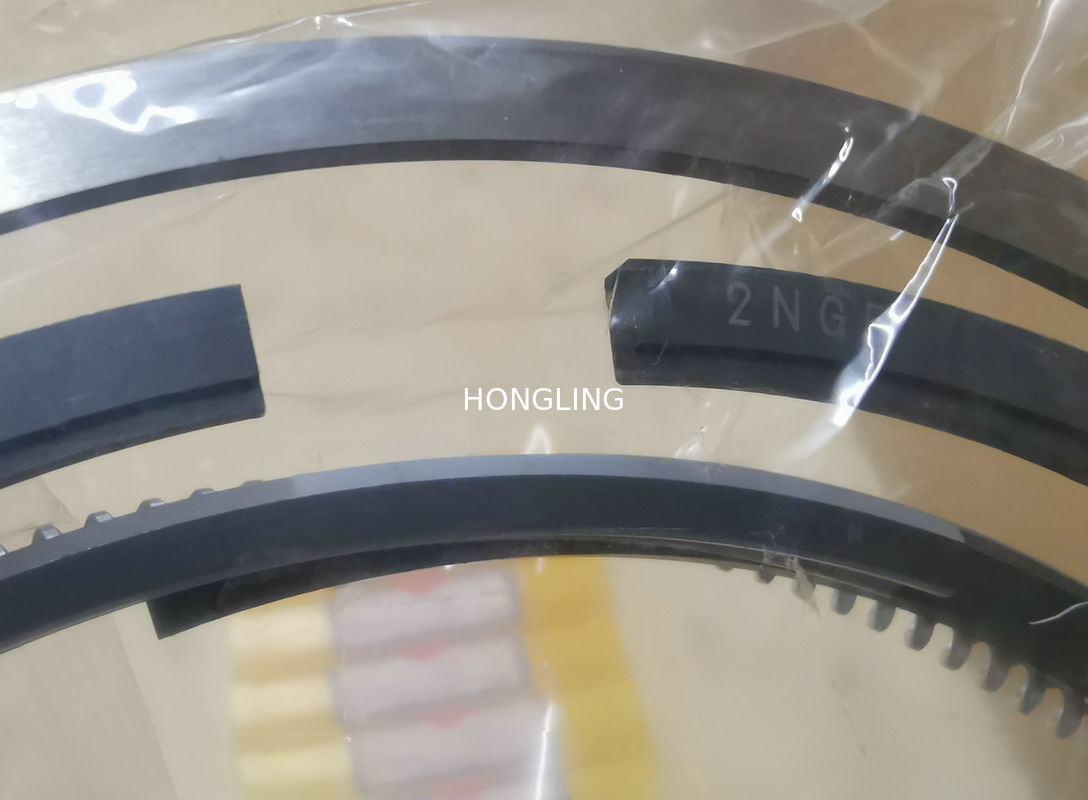

EG100 EF550 NPR Piston Rings 13011-1131 13011-1131B 13011-1460 For HINO Engine Parts 0EG100 EF550 NPR Piston Rings 13011-1131 13011-1131B 13011-1460 For HINO Engine Parts 1EG100 EF550 NPR Piston Rings 13011-1131 13011-1131B 13011-1460 For HINO Engine Parts 2





“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

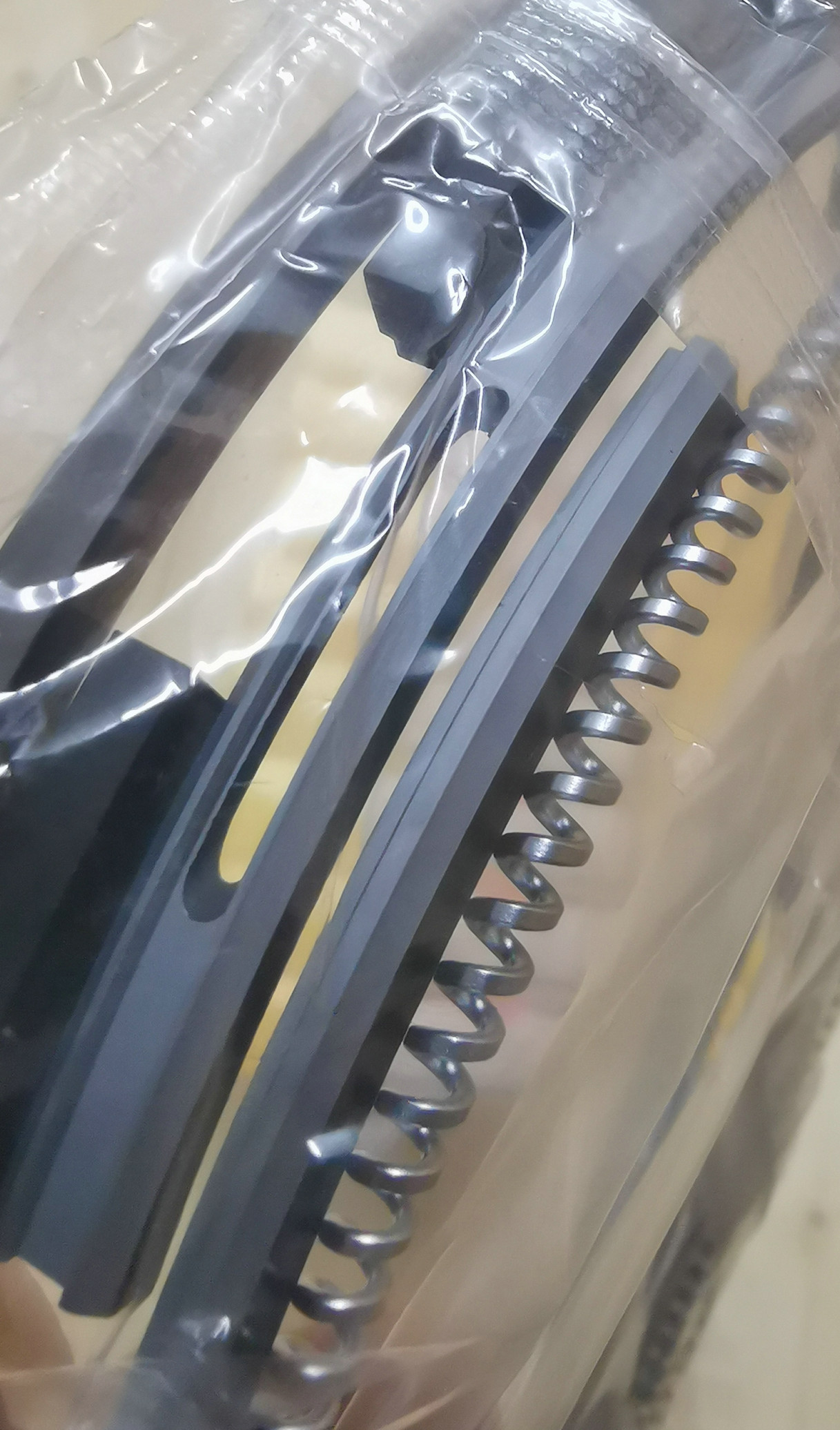

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.









EG100 EF550 NPR Piston Rings 13011-1131 13011-1131B 13011-1460 For HINO Engine Parts 3
