Premium HINO K13C NPR Piston Rings For Diesel Engines 13011-3090A 13011-2841A

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: K13C
Minimum Order Quantity: 1 SET
Price: usd+18+CYL
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 13011-3090A 13011-2841A NPR Catalog Code:: YJH20071ZX
Reference:: 13011-3090A 13011-2841A Make :: HINO
Engine Model:: K13C Cyl No. :: 6
SET/CYL:: CYL Delivery Time:: 2-5days
Cylinder Diameter: 135.0mm Exhaust Quantity: 12,882C.C
High Light:

K13C NPR Piston Rings

,

13011-3090A NPR Piston Rings

,

NPR Piston Rings 13011-2841A


Product Description

Premium NPR HINO K13C Piston Rings for Diesel Engines 13011-3090A 13011-2841A



Piston Size(mm) Shape Mate
rial
Surface
Treatment
d1(D) h1(B) a1(T) Out
side
Upper
/Lower
1st 135.0 3.306 4.7 BF-K1 SR GN GN
2nd 135.0 3.5 5.4 T1-IC HB Cr Fe
3rd 135.0 3.5 5.4 B1-TUC CR Cr Fe
Oil 135.0 5.0 4.95 E-BC16 SR Cr Fe



Supplementary parameters:



Exhaust quantity:12,882 C,C
Vehicle Model Chassis Type:
Truck
Ranger
Super Dolphin
Profia
FS
FR
FN
The Hino K13 model has four different products in NPR's piston ring products, among which this product and the other product are identical in size, with slight differences in material and surface treatment process. The difference between this product and the other two products is that there are differences in the dimensions of the first ring and oil ring. When selecting products, it is necessary to make a distinction based on these details, which can be distinguished according to the product's original factory code

Main models of HINO piston ring series:
J05C/J05E J08E P11C EK100 EK130 K13C EF750 EF300 F17C F17D F20C F21C WO6E H06/H07C EP100 H07D ER200 DK10 M10C

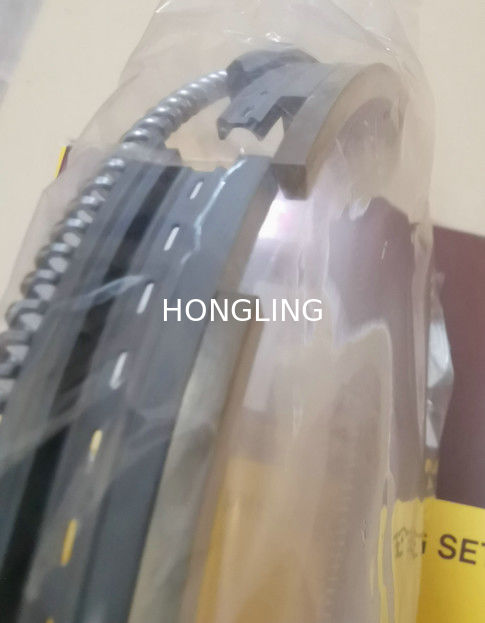

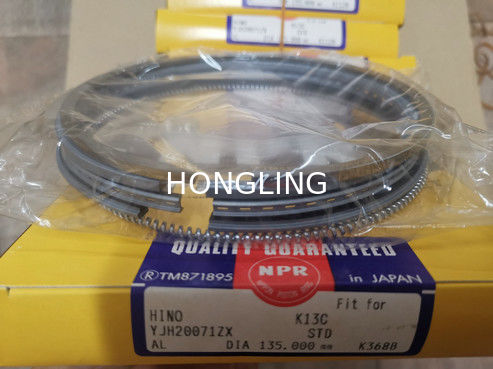

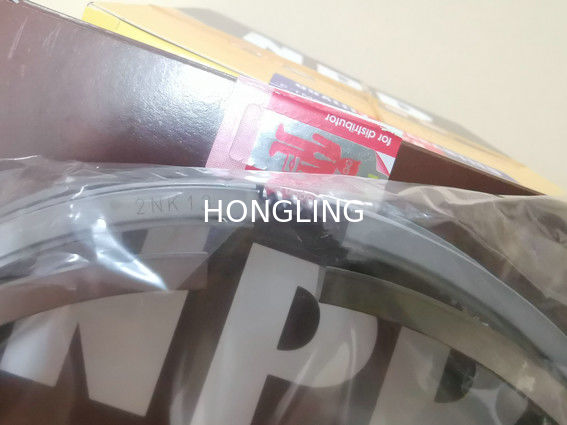

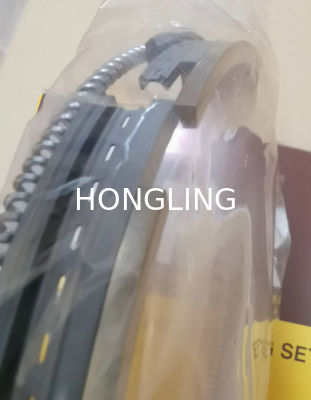

Premium HINO K13C NPR Piston Rings For Diesel Engines 13011-3090A 13011-2841A 0

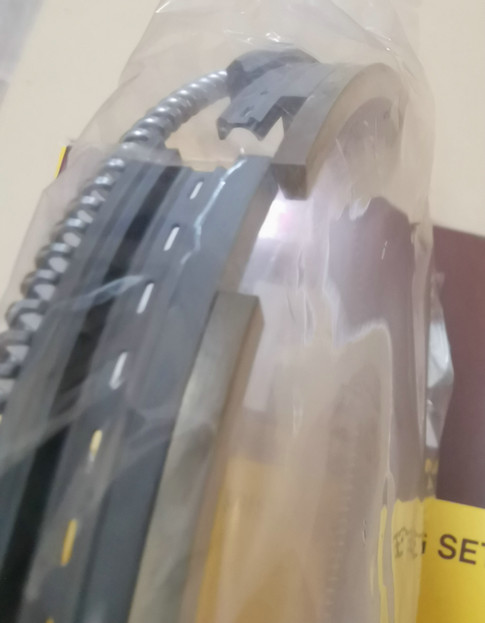

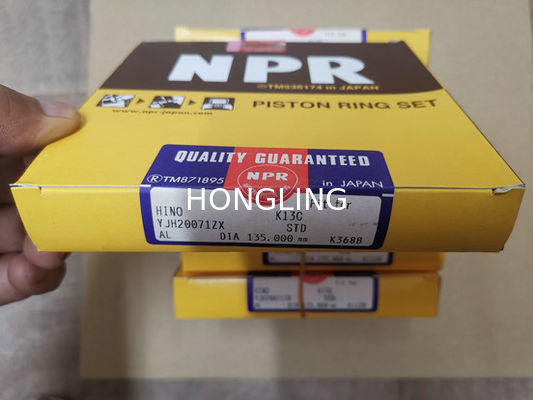

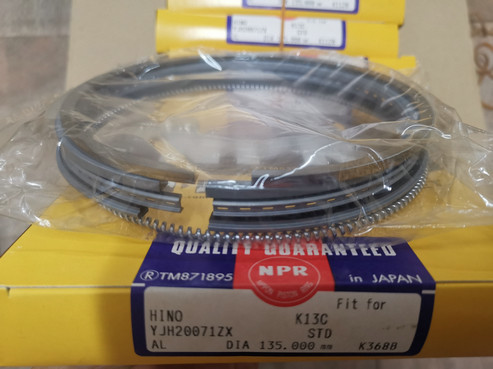

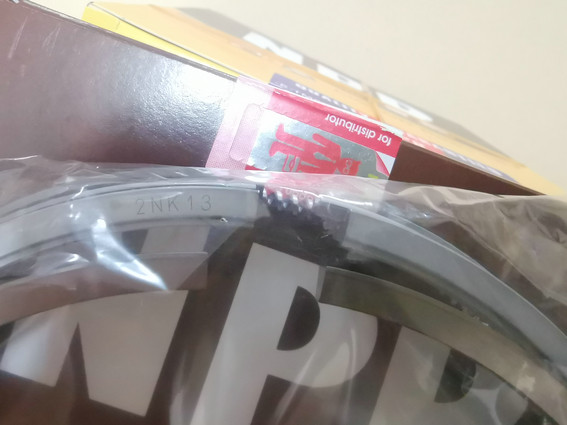

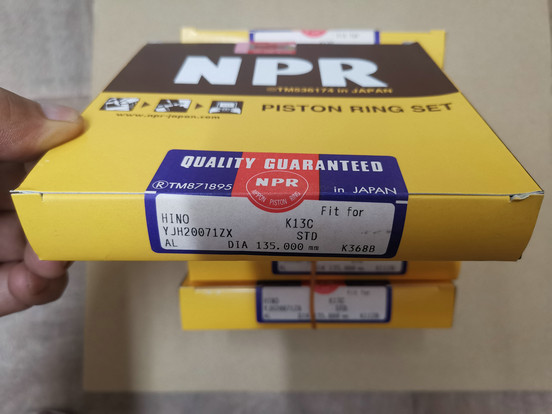

Premium HINO K13C NPR Piston Rings For Diesel Engines 13011-3090A 13011-2841A 1
