HINO K13D NPR Piston Rings For Diesel Engines 13011-2770 13011-2771B

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: K13D
Minimum Order Quantity: 1 SET
Price: usd+138+SET
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 13011-2770 13011-2771B 13019-1620A(cyl) NPR Catalog Code:: SDH20061ZX
Reference:: 13011-2770 13011-2771B 13019-1620A(cyl) Make :: HINO
Engine Model:: K13D Cyl No. :: 6
SET/CYL:: SET Delivery Time:: 2-5days
Cylinder Diameter: 137.0mm Exhaust Quantity: 13,267C.C
High Light:

K13D NPR Piston Rings

,

13011-2770 NPR Piston Rings

,

13011-2771B Piston Rings


Product Description

HINO K13D Piston Rings for Diesel Engines 13011-2770 13011-2771B





Piston Size(mm) Shape Mate
rial
Surface
Treatment
d1(D) h1(B) a1(T) Out
side
Upper
/Lower
1st 137.0 3.306 4.7 BF-K1 SR GN GN
2nd 137.0 3.5 5.4 T1-IC HB Cr Fe
3rd 137.0 3.5 5.4 B1-TUC CR Cr Fe
Oil 137.0 5.0 4.95 E-BC16 SR Cr Fe


Supplementary parameters:



Exhaust quantity:13,267 C,C
Vehicle Model Chassis Type:Super Dolphin

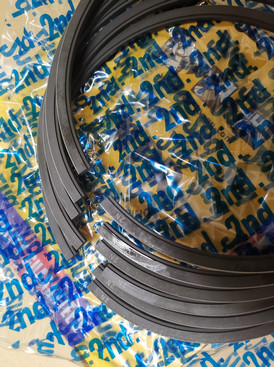

HINO K13D NPR Piston Rings For Diesel Engines 13011-2770 13011-2771B 0



NPR PISTON RING SET Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.
II.Confirmation that rings are fitted correctly:
1,Make sure rings can be moved freely - without jamming-in the piston grooves.
2,Make sure each ring gap is not positioned in line with piston pin axis or thrust
III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.
Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.

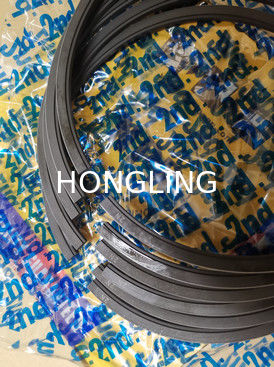

HINO K13D NPR Piston Rings For Diesel Engines 13011-2770 13011-2771B 1

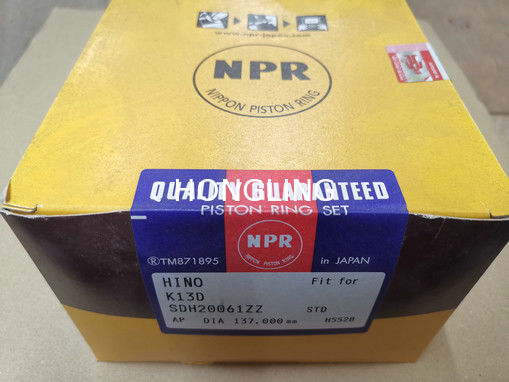

HINO K13D NPR Piston Rings For Diesel Engines 13011-2770 13011-2771B 2

HINO K13D NPR Piston Rings For Diesel Engines 13011-2770 13011-2771B 3

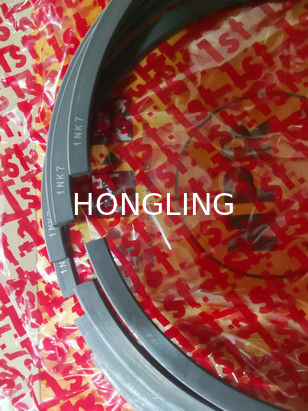

HINO K13D NPR Piston Rings For Diesel Engines 13011-2770 13011-2771B 4
