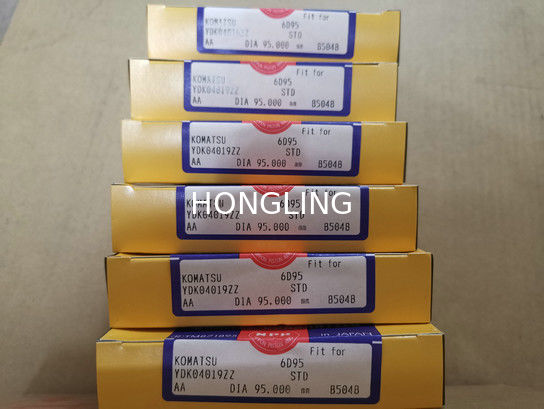

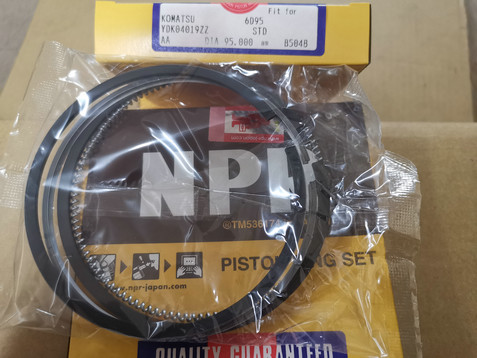

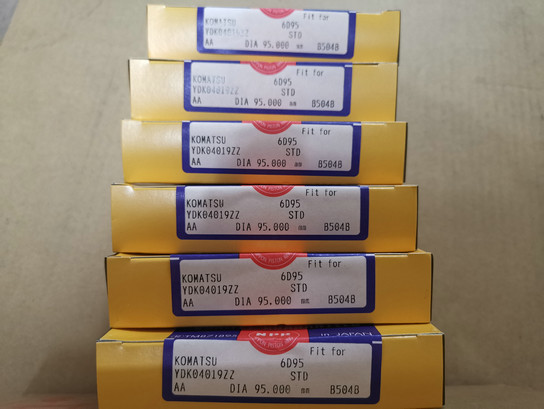

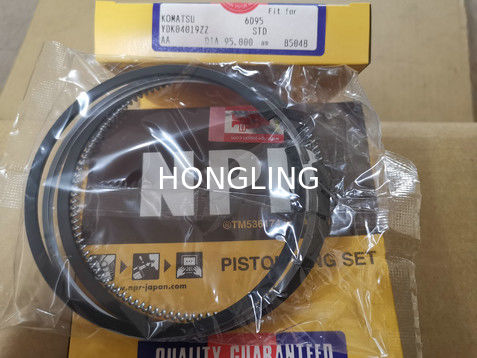

Matching NPR Piston Rings For Komatsu 4D95 6D95 6204-31-2202

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: 6D95 SA6D95 4D95
Minimum Order Quantity: 1 SET
Price: usd+9+CYL
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 6204-31-2202 NPR Catalog Code:: YDK04019ZZ
Reference:: 6204-31-2202 Make :: Komatsu
Engine Model:: 6D95 SA6D95 4D95 Cyl No. :: 6
SET/CYL:: CYL Delivery Time:: 2-5days
Cylinder Diameter: 95.0mm Exhaust Quantity: 4,890C.C
High Light:

6D95 NPR Piston Rings

,

4D95 NPR Piston Rings

,

6204-31-2202 NPR Piston Rings


Product Description

Matching piston ring for Komatsu 4D95/6D95 model 6204-31-2202



Engine Type Exhaust quantity
C.C
Vehicle Model Chassis Type NPR Catalog Code Cyl No. Position Size(mm) Shape Mate rial Surface
Treatment
Reference
d 1 (D) h 1 (B) a 1
(T)
Outside Upper /Lower
6D95
SA6D95
4,890 Bulldozer
Power Shovel
YDK04019ZZ 6 1st 95 2 4 BF CR Cr Fe 6204-31-2202
2nd 95 2 4 T1 CR Fe Fe
Oil 95 4 4.15 E-BC16 SR Cr Fe





Matching NPR Piston Rings For Komatsu 4D95 6D95 6204-31-2202 0


1. This product is produced and manufactured by a professional factory in Japan, with good quality;

2. This product is packaged as a single cylinder independent package, making it convenient to configure the 4-cylinder 4D95 and 6-cylinder 6D95 models according to requirements;

3. Please strictly follow the instructions on the outer packaging surface during installation.





NPR PISTON RING SET Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

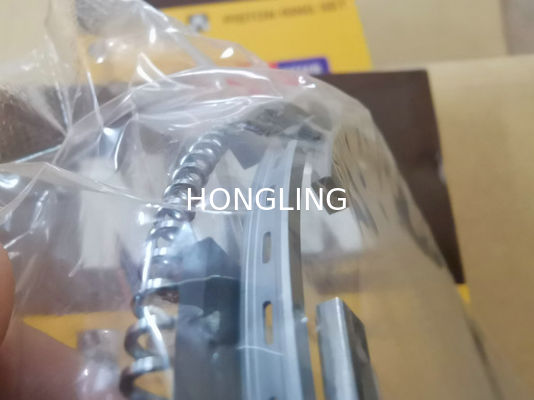

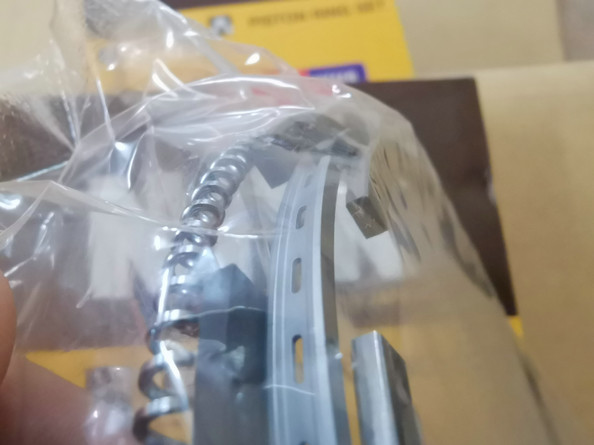

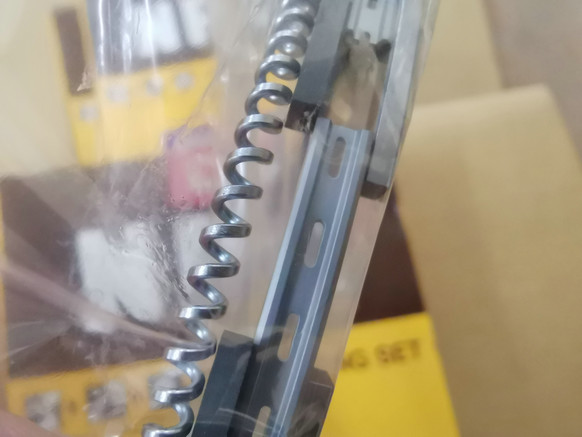

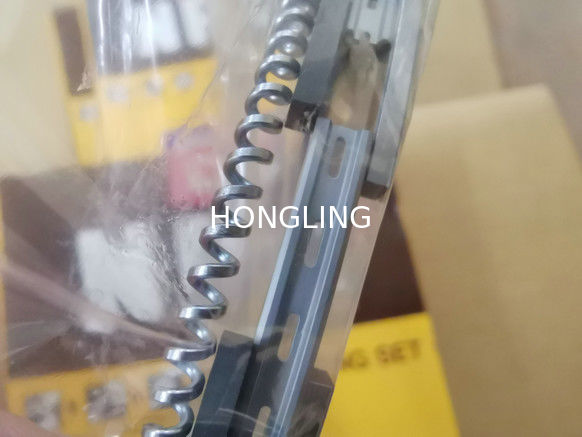

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.
