Komatsu Machinery 6D95 Engine Piston Rings PC200-5 PC200-6 6207-31-2500 6204-31-2202

Basic Information
Place of Origin: JAPAN
Brand Name: NPR
Model Number: 6D95-5 6D95-6
Minimum Order Quantity: 1 SET
Price: usd+9.2+CYL
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: NPR
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 6207-31-2500 6204-31-2202 NPR Catalog Code:: YDK04018ZX YDK04019ZZ
Reference:: 6207-31-2500 6204-31-2202 Make :: Komatsu
Engine Model:: 6D95-5 6D95-6 Cyl No. :: 6
SET/CYL:: CYL Delivery Time:: 2-5days
Cylinder Diameter: 95.0mm Exhaust Quantity: 4,890C.C
High Light:

6D95 Engine Piston Rings

,

PC200-6 Engine Piston Rings

,

6204-31-2202 Engine Piston Rings


Product Description

Komatsu Machinery 6D95 Engine Series PC200-5/PC200-6 6207-31-2500 6204-31-2202





Engine Type Exhaust quantity
C.C
Vehicle Model Chassis Type NPR Catalog Code Cyl No. Position Size(mm) Shape Mate rial Surface
Treatment
Reference
d 1 (D) h 1 (B) a 1
(T)
Outside Upper /Lower
S6D95 4,890 Bulldozer SDK04018ZX 6 1st 95.0 2.5 3.45 BF-K1 SR Cr Fe 6207-31-2500
Power Shovel 2nd 95.0 2.2 4.0 T1-K2 CR Cr Fe
  Oil 95.0 4 4.15 E-BC16 SR GN GN
Bulldozer SDK04023ZZ 6 1st 95.0 2.5 3.7 BF-K1 HB Cr Fe 6209-31-2400
Power Shovel 2nd 95.0 2.2 4.0 T1-K1-IC HB Cr Fe
  Oil 95.0 4 4.15 E-BC16 SR Cr Fe
Bulldozer SDK04032ZZ 6 1st 95.0 2.5 3.7 BF-K1 HB Cr Fe 6207-31-2200(cyl)
Power Shovel 2nd 95.0 2 4.0 T1-IC CR Fe Fe
  Oil 95.0 4 4.35 E-BC16 SR GN GN
6D95
SA6D95
4,890 Bulldozer SDK04019ZZ 6 1st 95.0 2 4.0 BF CR Cr Fe 6204-31-2202
Power Shovel 2nd 95.0 2 4.0 T1 CR Fe Fe
  Oil 95.0 4 4.15 E-BC16 SR Cr Fe
6D95 SDK04024ZY 6 1st 95.0 2.2 4.0 BF-K2 CR Cr Fe 6202-32-2200
2nd 95.0 2 4.0 T1 CR Fe Fe
Oil 95.0 4 4.15 E-BC16 SR GN GN



1. There are multiple sub models in the Komatsu Machinery 6D95 engine series, please differentiate according to OEM No. The piston ring size and shape of different models may vary;



2. The legend only uses two models, PC200-5/PC200-6, for comparison. Please check and select the specific differences and matching model sizes according to the details in the product manual;



3. The products are all produced by Japanese NPR accessory professional factories, with excellent quality and precise dimensions, which can be compared to the original factory manufacturing;



4. Please strictly follow the product manual and professional procedures for product installation

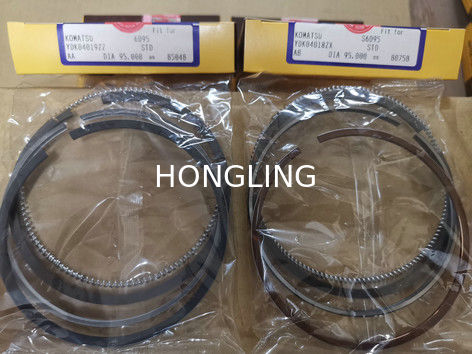

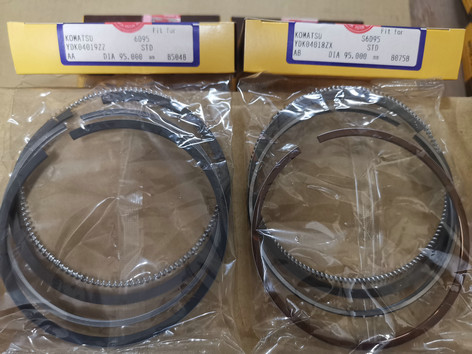

Komatsu Machinery 6D95 Engine Piston Rings PC200-5 PC200-6 6207-31-2500 6204-31-2202 0




NPR PISTON RING SET Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.
