Toyota Automobiles Diesel Engine 2z Piston Ring 13011-78700-71

Basic Information
Place of Origin: JAPAN
Brand Name: RIK
Model Number: 2Z
Minimum Order Quantity: 1 SET
Price: usd+8.8+CYL
Packaging Details: CARTON
Delivery Time: 2-5days
Payment Terms: T/T
Supply Ability: 100 SETS
Detail Information
Type:: Piston Ring Brand Name :: RIK
Place Of Origin:: JAPAN Condition:: New, 100%new
OEM No:: 13011-78700-71 Set NO.: 28049
Remarks:: 13011-78700-71 Make :: TOYOTA
Engine Model:: 2Z Cyl No. :: 4
SET/CYL:: CYL Delivery Time:: 2-5days
Cylinder Diameter: 98.0mm Exhaust Quantity: 3,469 C.C
High Light:

Diesel Engine 2z Piston Ring


13011-78700-71 Piston Ring

Product Description

TOYOTA Automobiles Diesel-engine 2Z Piston ring 13011-78700-71


Product Parameter


Engine Type cc Vehicle Model
Chassis Type
Cyl. No Piston Ring Remarks
Position Size (mm) d1×h1×a1 (D×B×T) Material Surface Treatment Set Type Set No.
2Z 3,469 ●Forklift 4 1 98 × 2.0 × 3.6   GN SM 28049 13011-78700-71
2 98 × 2.0 × 4.2 Cr1
0 98 × 4.0 × 2.5 GN



Product Description


The hard chromium plating layer has excellent characteristics which combine the original properties of chromium metal with the advantages of erectro-deposits. The main features of hard chromium plating are as follows:

1. Extermely high hardness of HmV (Micro Vickers)

800 to 1100 (cf. gray cast iron 220 to 270)

2. High melting point of approx. 1800℃ (cf. cast iron 1200℃ )

3. Good thermal conductivity and corrosion resistance.

4. Low friction factor and excellent wear resistance. Such features are very effective in preventing piston ring wear.

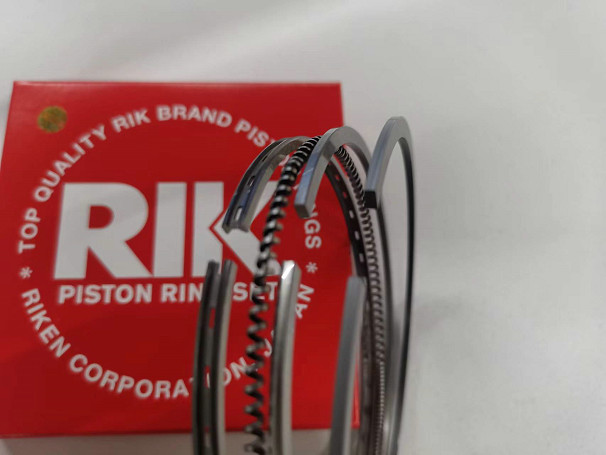

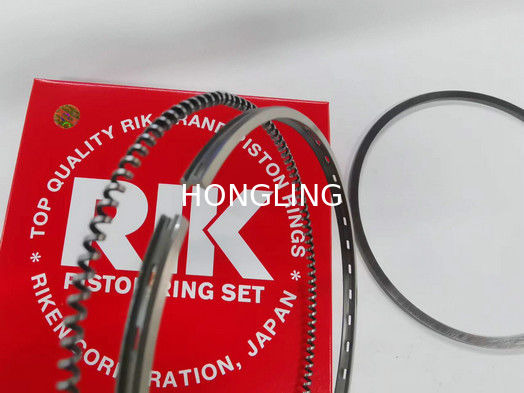

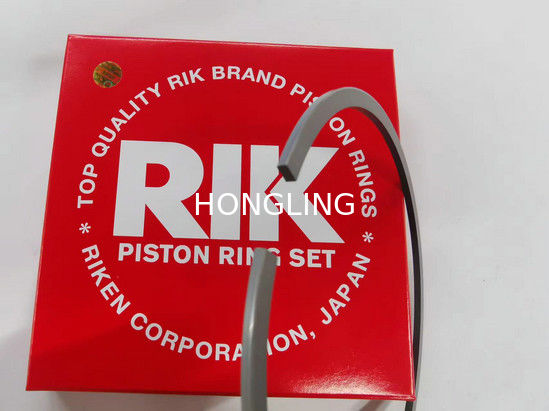

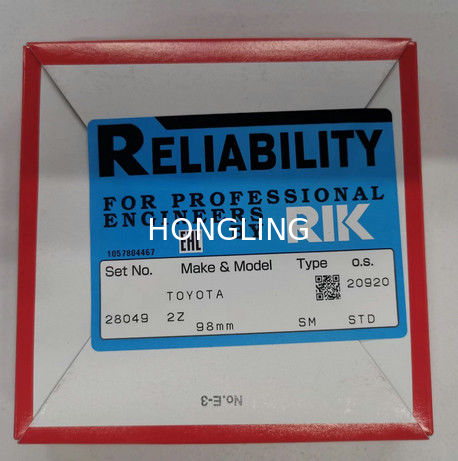

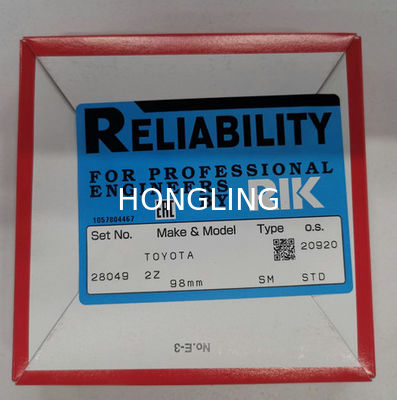

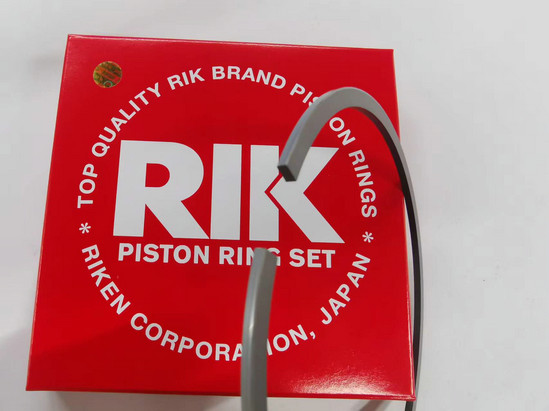

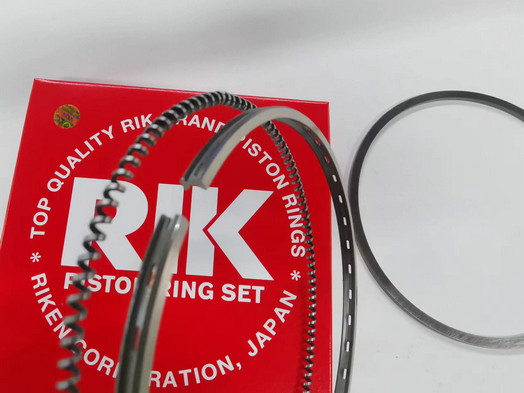

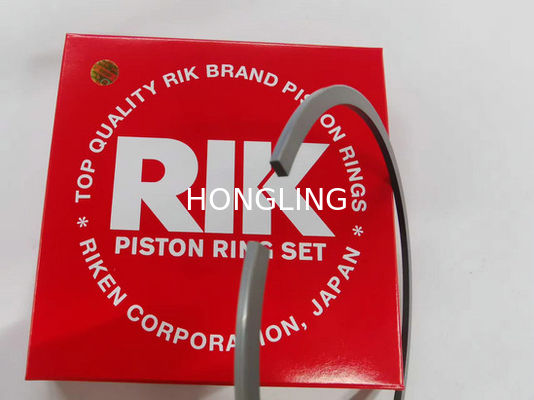

The following are supplementary pictures for details:


Toyota Automobiles Diesel Engine 2z Piston Ring 13011-78700-71 0
