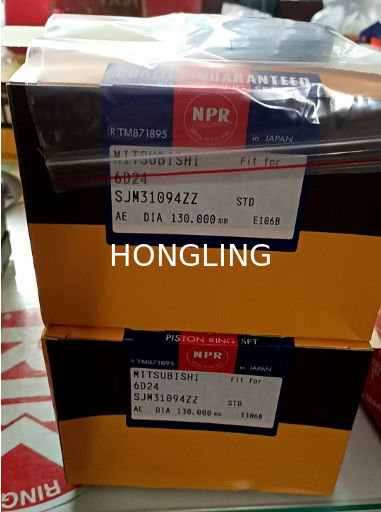

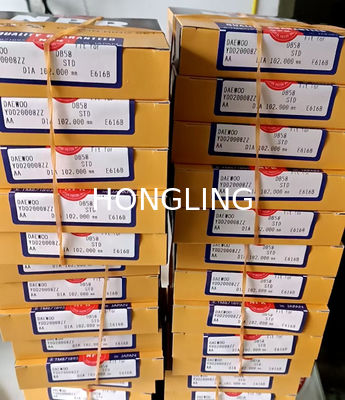

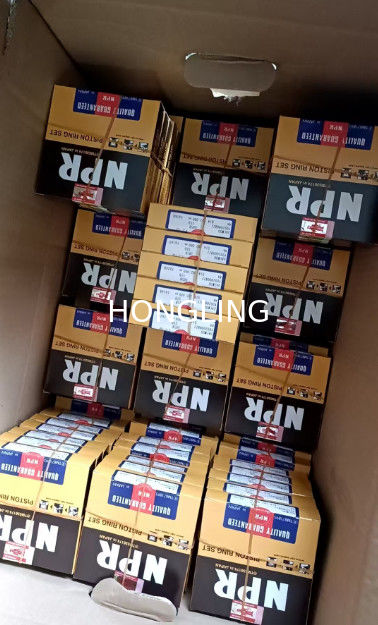

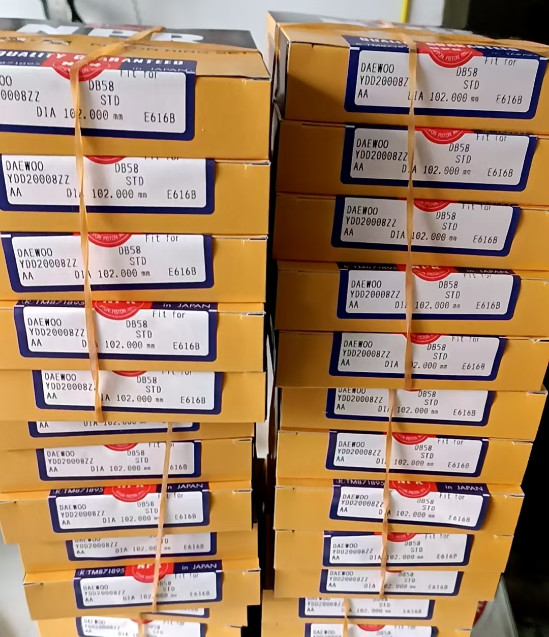

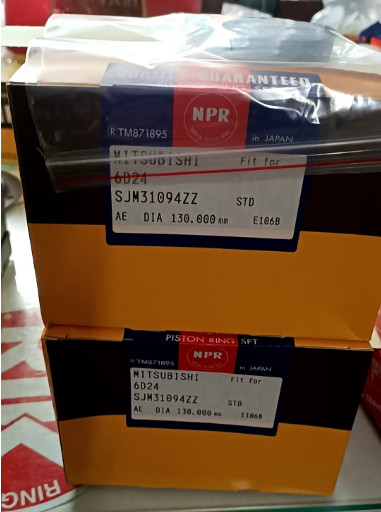

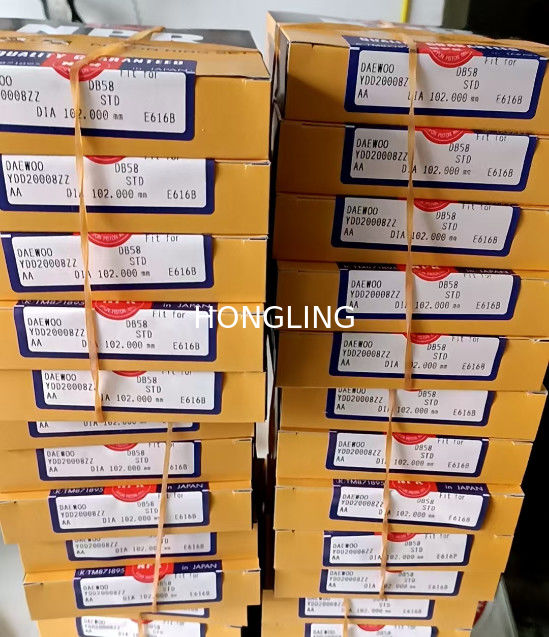

NPR Piston Rings For DB58 65.02503-8058 6D24 ME151190 SJM31094ZZ

 NPR Piston Rings For DB58 65.02503-8058 6D24 ME151190 SJM31094ZZ

1. This product is produced and manufactured by a professional factory in Japan, with good quality;

2. This product is packaged as a single cylinder independent package, making it convenient to configure the 4-cylinder 4D95 and 6-cylinder 6D95 models according to requirements;

3. Please strictly follow the instructions on the outer packaging surface during installation.

“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.
